AC Infinity

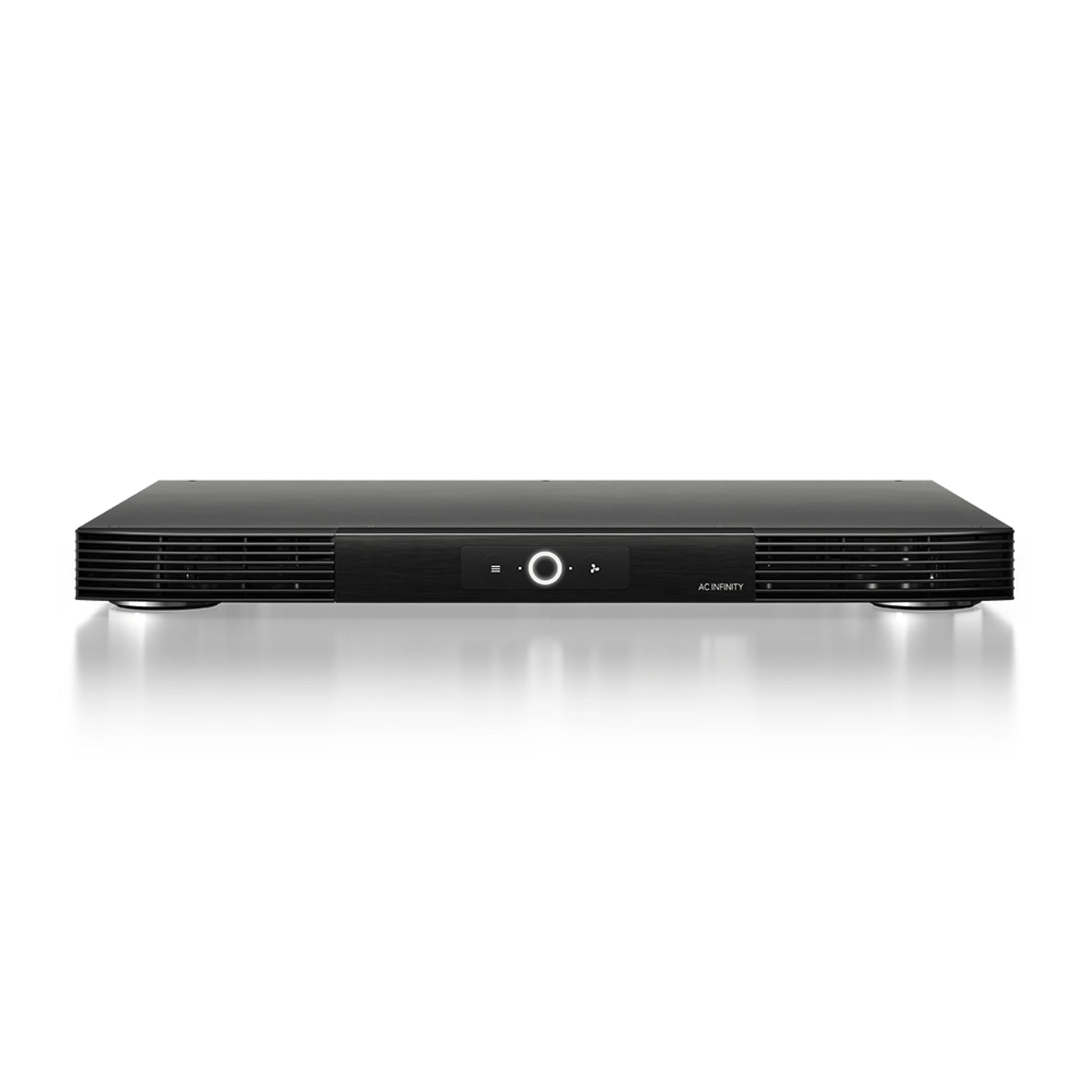

Aircom S10, Receiver and AV Component Cooling Blower System, Front Exhaust 17"

Aircom S10, Receiver and AV Component Cooling Blower System, Front Exhaust 17"

Regular price £109.99 GBP
Regular price Sale price £109.99 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.
  • A quiet fan system designed for cooling receivers, amplifiers, DVRs, and other AV components.
  • Protects components from overheating, performance issues, and shortened lifespans.
  • Programming features two thermal trigger modes and four speed control options.
  • Contains three dual-ball bearing blowers with PWM-controlled motors to minimize noise.
  • Dimensions: 17 x 13.5 x 1.5 in. | Exhaust: Front | Airflow: 160 CFM | Noise: 24 dBA | Bearings: Dual Ball

PRODUCT DESCRIPTION

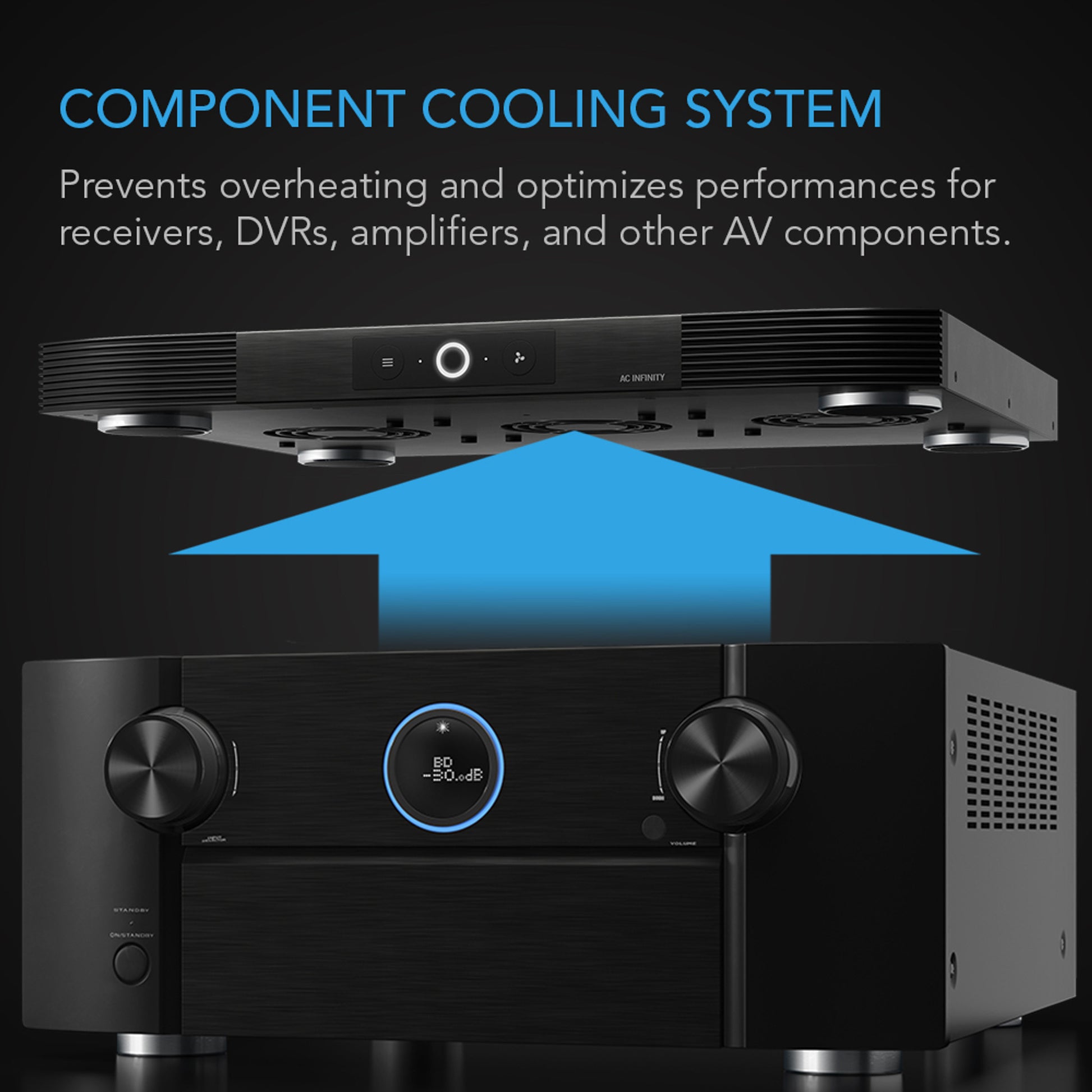

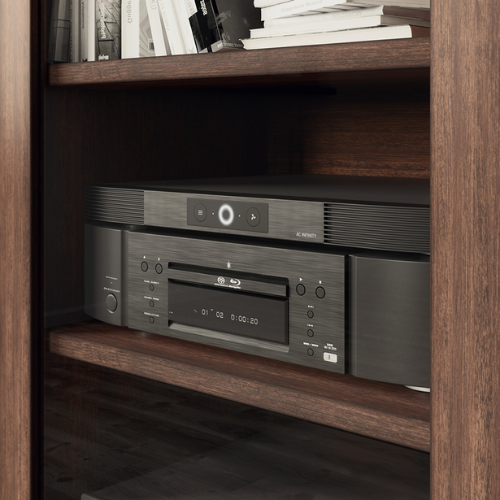

A quiet cooling fan system designed to be placed on top of AV components such as receivers, routers, game consoles, and AV cabinet components. Maintaining an optimal temperature for components prevents overheating, ensures constant performance, and extends their lifespan. The controller on the front of the cooling system features a smart thermostat trigger and fan speed control. The steel enclosure houses two dual-ball bearing blowers that pull heat out of the component and exhaust towards the front. The dual ball bearings also allow this fan system to be mounted horizontally or vertically. Its low-profile design enables the unit to fit in tight spaces. Includes corded power adapter to plug the fan system through an outlet.

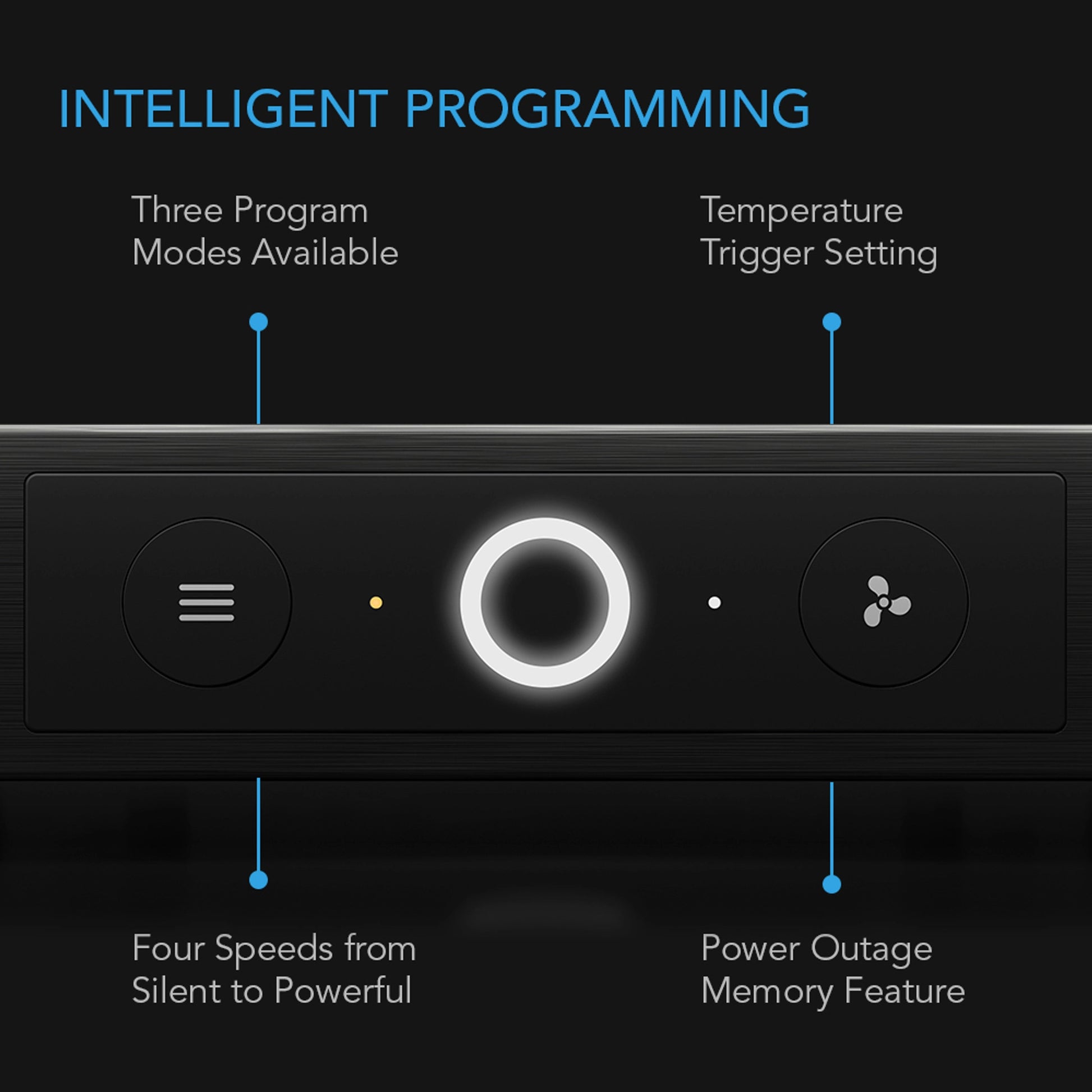

INTELLIGENT PROGRAMMING

There are three programming settings available which includes two temperature trigger modes. The fans can also be set to run continuously or be turned off. Four fan speeds are available for each active mode and will determine the speed at which the fans run when they are triggered. This ensures optimal airflow and noise levels for your application.

DESIGN AND CONSTRUCTION

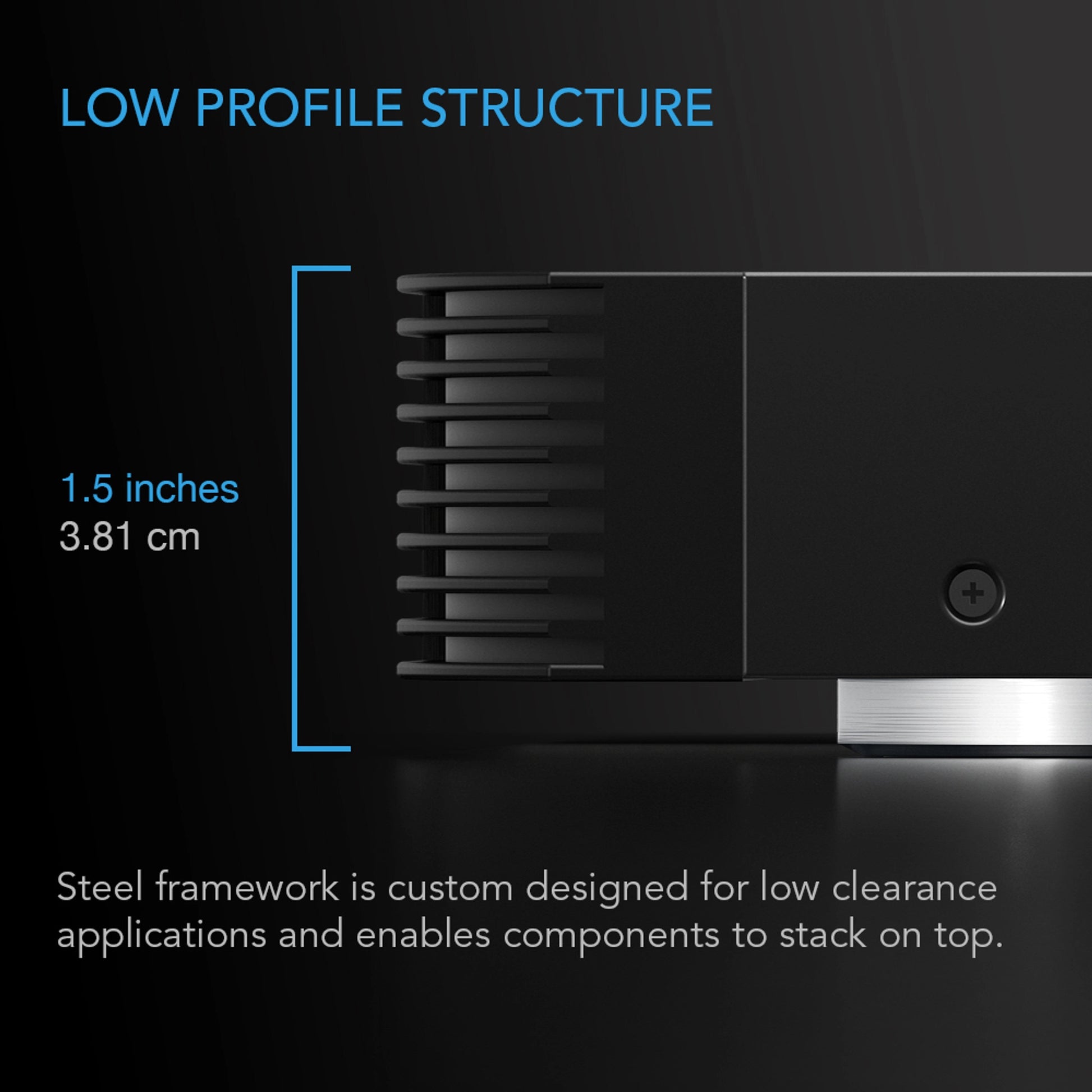

Each system features dual-ball bearing blowers rated at 67,000 hours and are certified by CE and RoHS. Blowers contain a PWM-controlled motor used to minimize noise during speed variations and are suspended in mid-air with silicone mounts to absorb vibrations. A low-profile design allows the unit to fit in applications with a limited height clearance. Aluminum and steel construction enables additional components up to 30 pounds to be stacked on top.

Product Identification
   Manufacturer    AC Infinity Inc.
   Product Name    AIRCOM S10
   Product Model    AC-ACS10
   UPC Code    819137020320

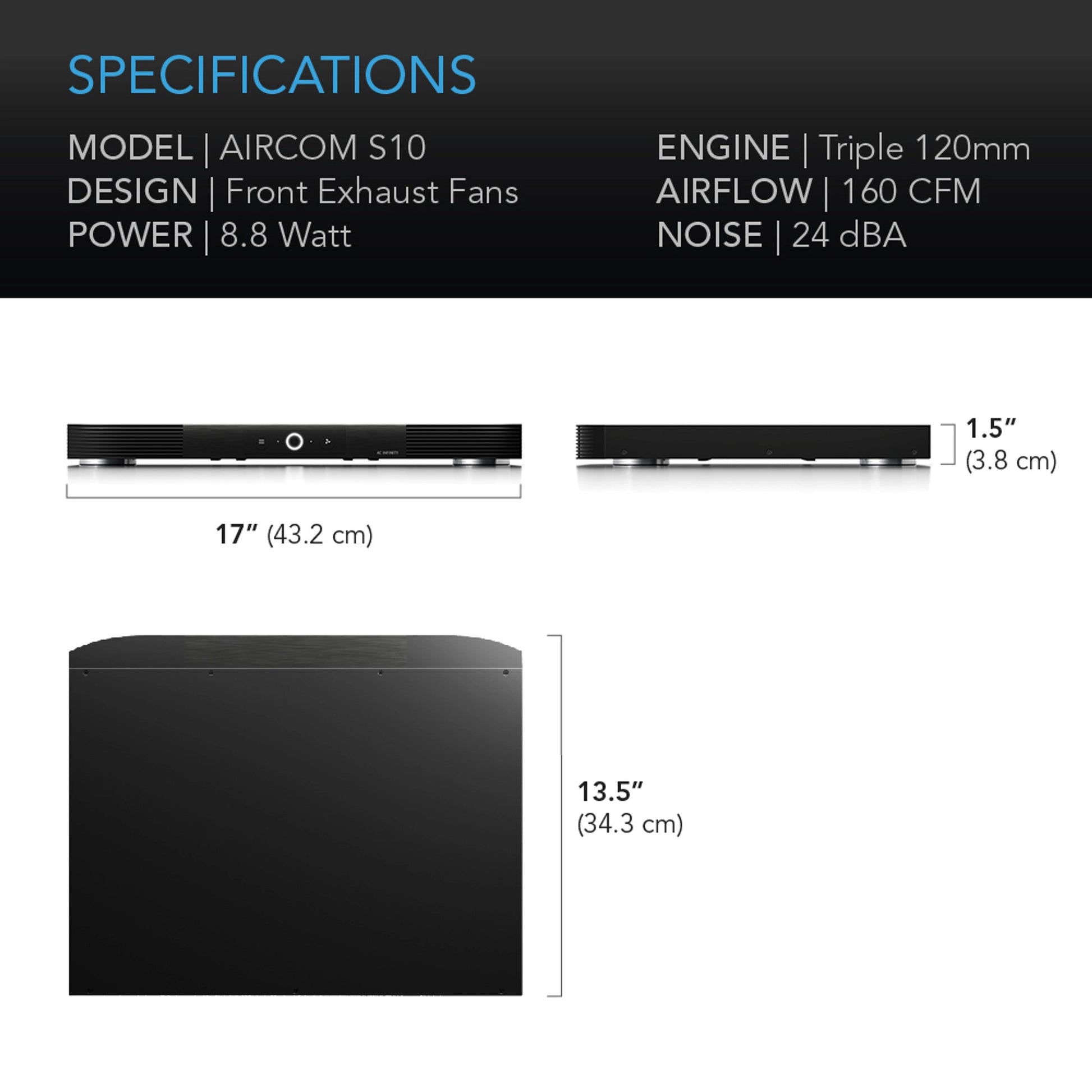

   Product Dimensions
   Total Dimensions    17 x 13.5 x 1.5 in. (43.2 x 34.3 x 3.8 cm)
   Cord Length    72 in (6 feet)
   Product Performance and Technical Specs
   Number of Blowers    3
   Exhaust    Front
   Total Airflow    160 CFM
   Total Noise    24 dBA
   Static Pressure    1 mm-H2O
   Operating Voltage    12V DC
   Power    8.8 W
   Current    0.73 A
   Wall Adapter Input    100 to 240V AC - Compatible UK adapter supplied
   Operating Humidity    35 to 85% RH
   Operating Temperature    0 to 158°F
   Fan Bearings    Dual Ball
   Mounting Positions    Horizontal or Vertical
   L10 Life Expectancy    67,000 Hours
   Top Weight Capacity    30 Pounds
   CE Certification (Whole Product)
   CE Certification (Whole Product) PDF
   RoHS Cert. (Whole Product)
   Installation Manual PDF
   Product Manual
   Product Manual
   Installation Manual PDF

Compatible Power Supply Included
