AC Infinity

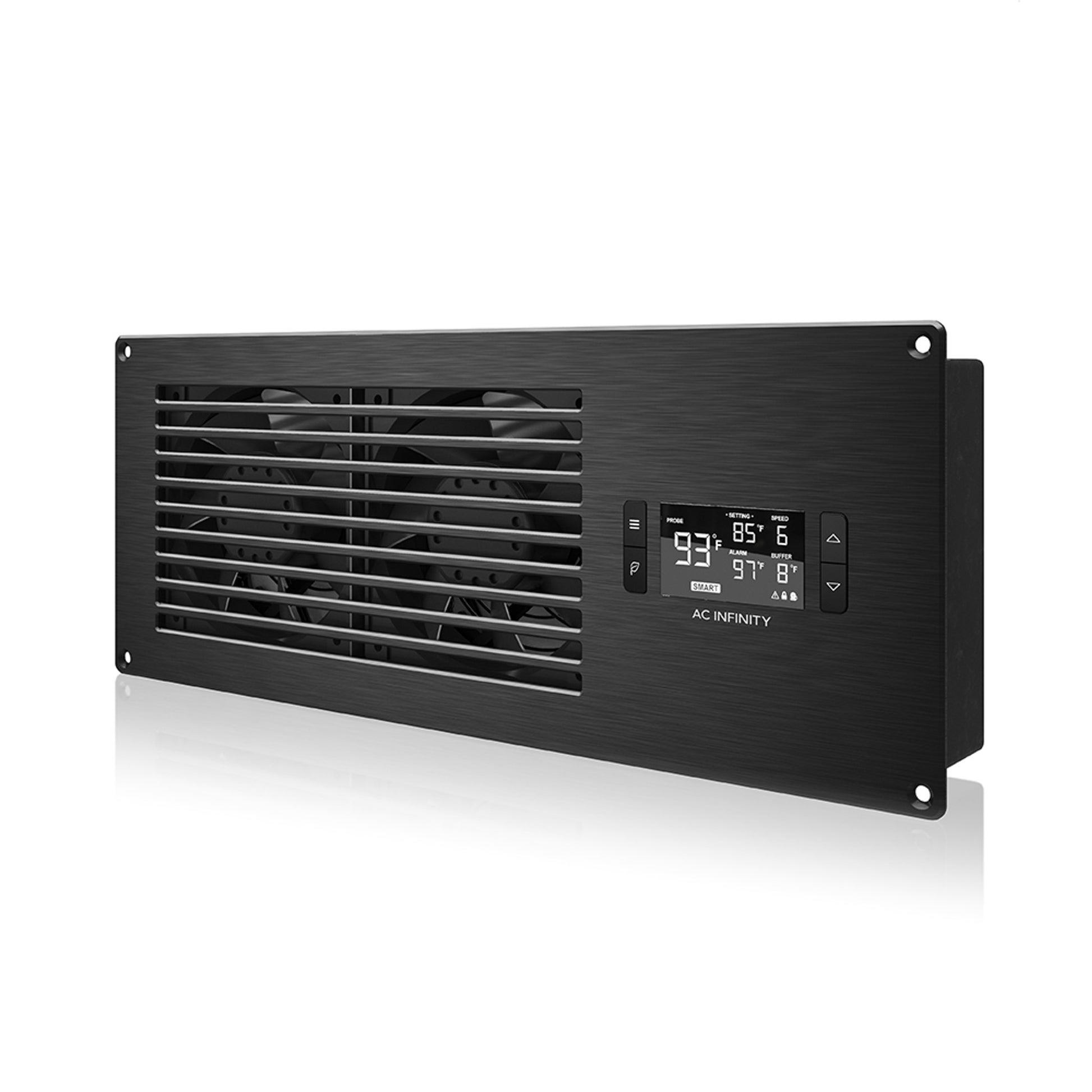

Airframe T7-N Black, Av Equipment Closet And Room Fan System 17", Intake

Airframe T7-N Black, Av Equipment Closet And Room Fan System 17", Intake

Regular price £129.99 GBP
Regular price Sale price £129.99 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

Electrical items ship with UK power supply

AC-AFT7-BN

  • A high-airflow fan system designed for cooling AV equipment rooms, closets, and larger enclosures.
  • Programmable thermostat controller with automated speed control, alarm warnings, and backup memory.
  • Premium anodized aluminum construction with CNC-machined detailing for a professional appearance.

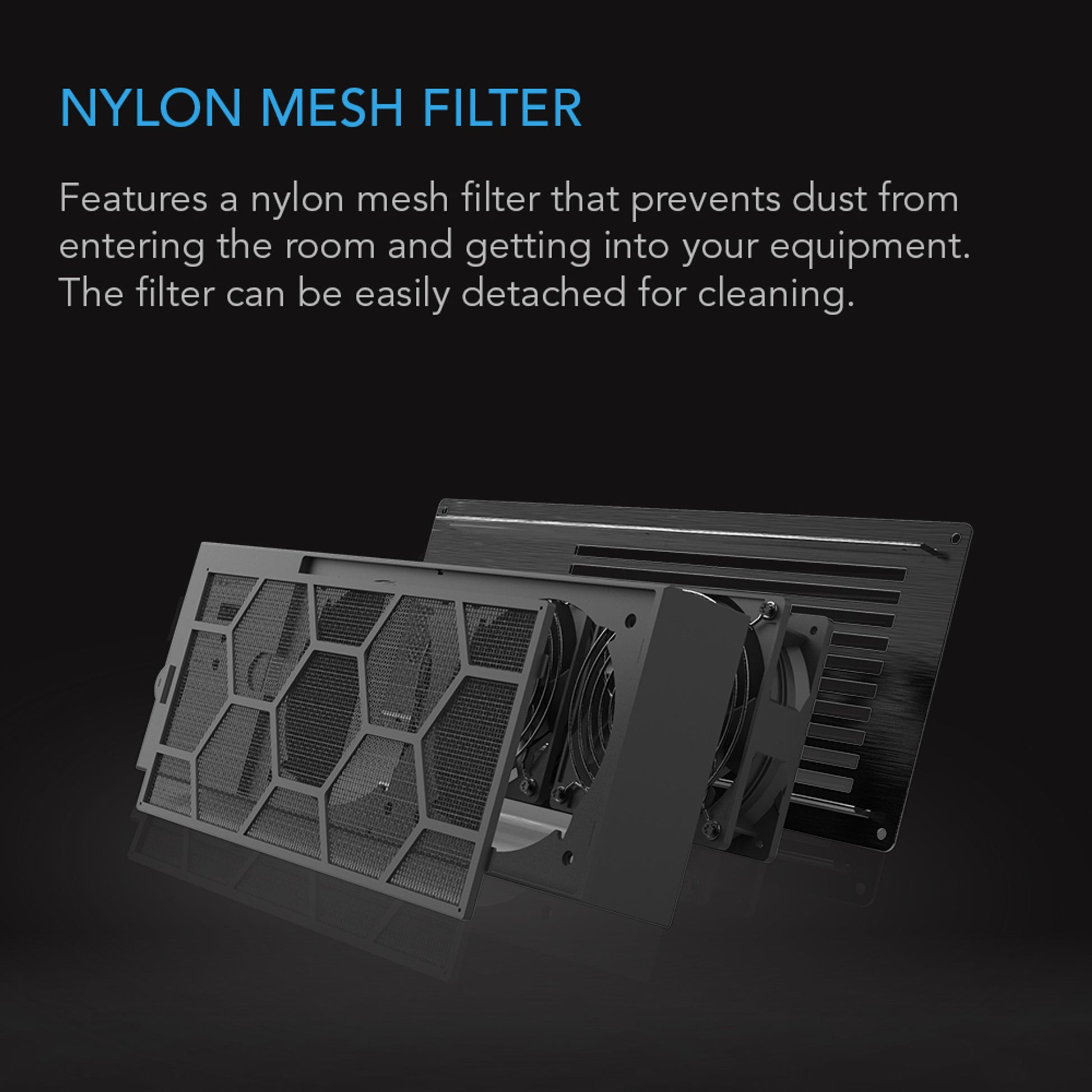

  • Features a detachable nylon-mesh filter which will prevent dust from entering the room and into equipment.
  • Color: Black | Design: Intake | Dims.: 16.5 x 6.5 x 2.3 in. | Airflow: 200 CFM | Noise: 26 Dba | Bearings: Dual Ball

PRODUCT DESCRIPTION

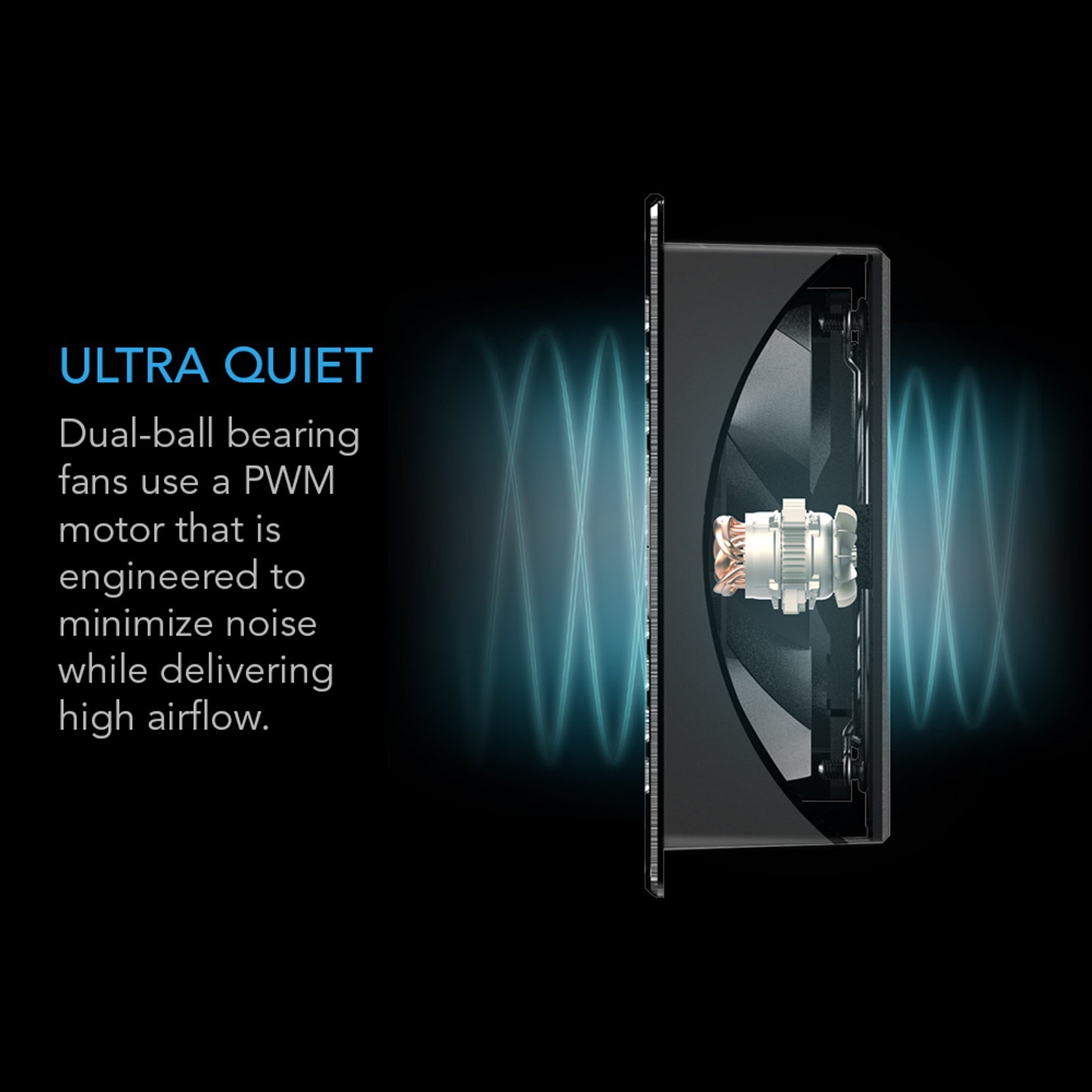

The AIRFRAME series is designed to intelligently cool AV closets, rooms, and large enclosures. Featuring thermal control and high airflow fans, the system efficiently cools rooms holding various audio video components and equipment. Each unit includes a nylon-mesh filter which can prevent dust particles from entering the room and getting into your equipment. This filter can be easily detached for cleaning. Each fan is engineered to maximize airflow while keeping noise levels to a minimum. Features long life dual ball bearings that are rated at 67,000 hours and allows this fan system to be mounted horizontally or vertically. The frame is constructed with premium aluminum alloy, carefully anodized, brushed, and machined for a professional and detailed appearance. Includes all necessary hardware to easily mount the unit onto a door or wall, and power it through an outlet.

INTELLIGENT COOLING

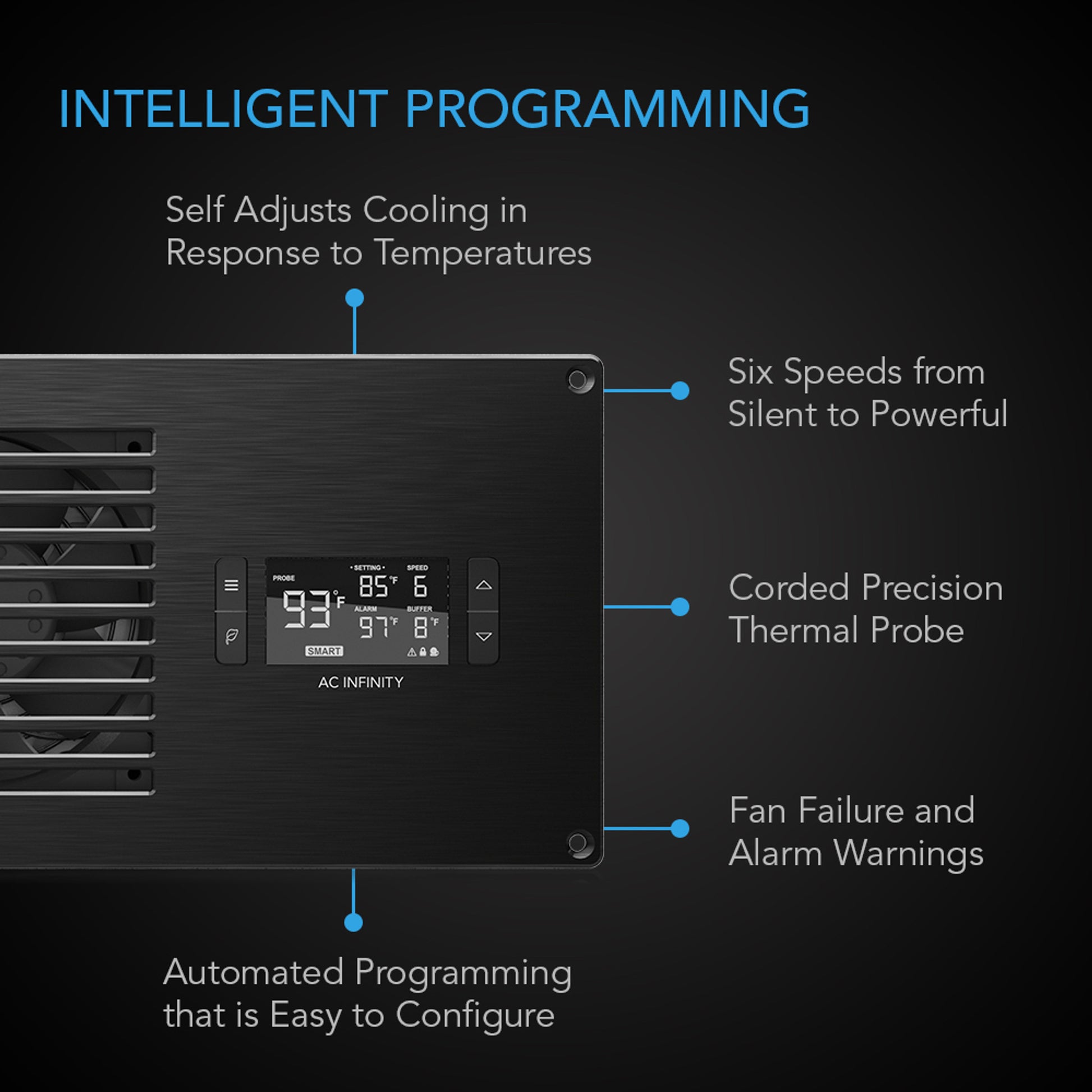

Programming includes an easy-to-use thermostat and a SMART mode that automatically adjusts the fan’s speed to react to varying temperatures. Additional features include alarm alerts, fan failure triggers, power savings setting, display lock, and backup memory. Six fan speeds are available with three screen brightness settings.

APPLICATIONS

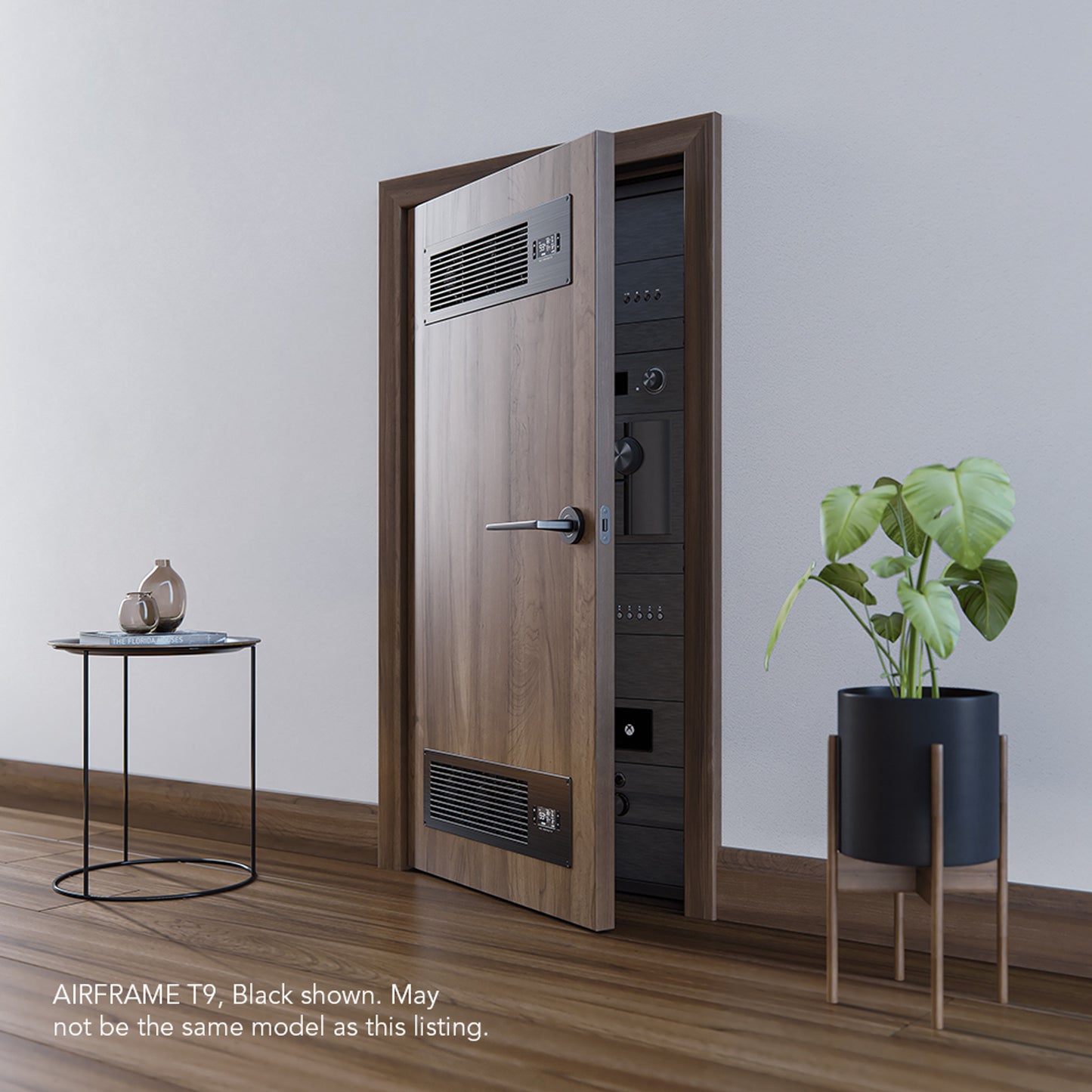

This high airflow fan system can be mounted on the door or walls of equipment closets, rooms, and larger-sized enclosures. An airflow rating of 200 CFM will provide proper cooling to small AV closets holding server, network, IT and equipment racks.

Product Identification
   Manufacturer    AC Infinity Inc.
   Product Name    AIRFRAME T7-N Black, Intake
   Product Model    AC-AFT7-BN
   UPC Code    819137020177
   Product and Mounting Dimensions - Fan Unit
   Total Dimensions    16.5 x 6.49 x 2.28 in. (41.9 x 16.5 x 5.8 cm)
   Backside Enclosure Dimensions    15.39 x 5.55 in. (39.1 x 14.1 cm)
   Required Mounting Hole    15.51 x 5.59 in. (39.4 x 14.2 cm)
   Hole to Hole Distance    15.90 x 5.83 in. (40.4 x 14.8 cm)
   Screw Hole Size    Ø 0.197 in (Ø 0.5 cm)
   Cord Length    72 in (6 feet)
   Mounting Template
   Installation Manual PDF
   Product Performance and Technical Specs
   Design    Black
   Design    Intake
   Total Airflow    200 CFM
   Total Noise    26 dBA
   Static Pressure    5.5 mm-H2O
   Operating Voltage    12V DC
   Power    20 W
   Current    1.6 A
   Wall Adapter Input    100 to 240V AC
   Operating Humidity    35 to 85% RH
   Operating Temperature    0 to 158°F
   Fan Bearings    Dual Ball
   Mounting Positions    Horizontal or Vertical
   L10 Life Expectancy    67,000 Hours
   Fan Quality Approvals    CE, RoHS
   CE Certification (Whole Product)
   CE Certification (Whole Product) PDF
   RoHS Cert. (Whole Product)
   Installation Manual PDF
   Product Manuals
   Fan Unit Manual
   Installation Manual PDF

Compatible UK power supply included
