AC Infinity

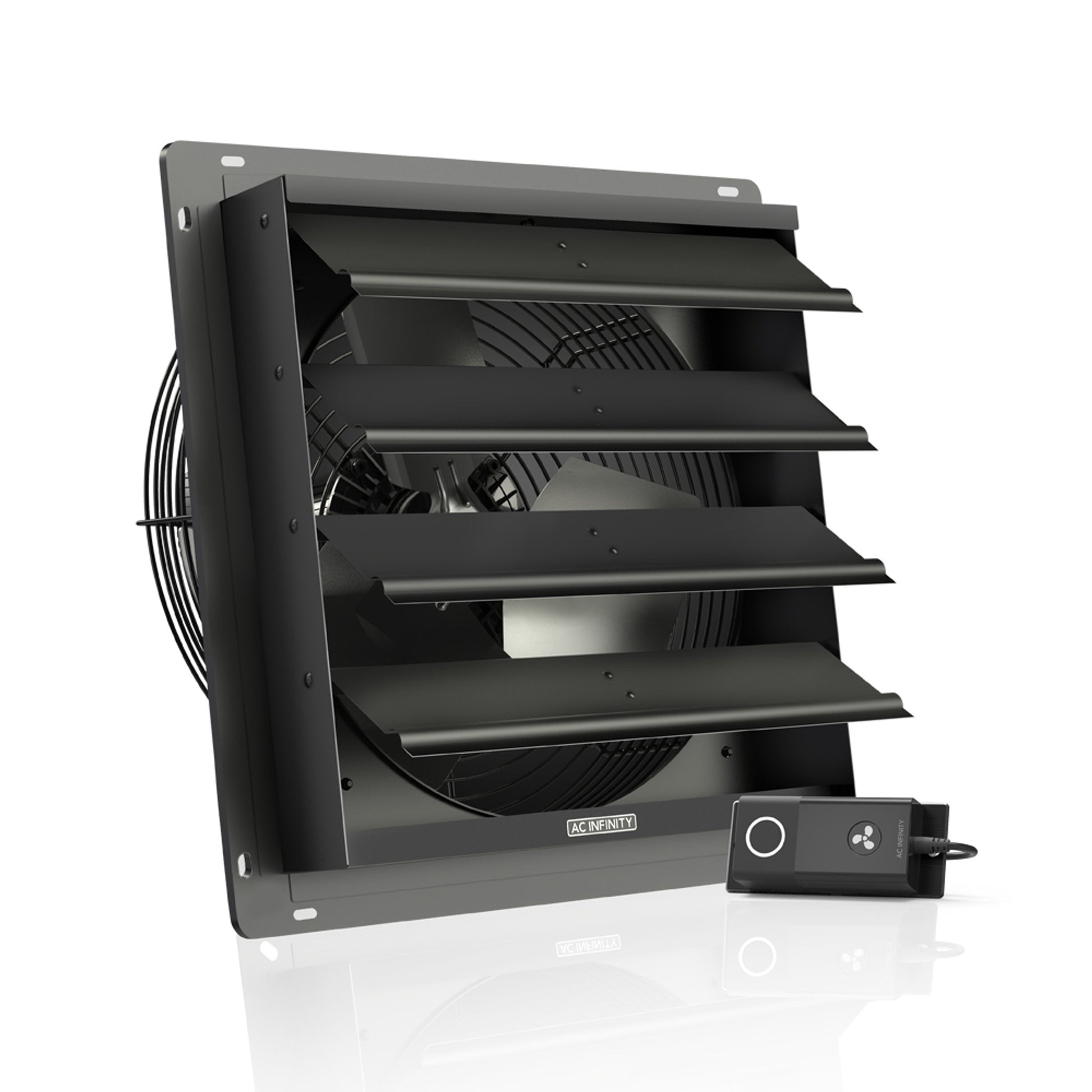

Airlift S14, Shutter Exhaust Ventilation Fan 14", Speed Controller

Airlift S14, Shutter Exhaust Ventilation Fan 14", Speed Controller

Regular price £209.99 GBP
Regular price Sale price £209.99 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

Electrical items ship with UK power supply

AC-ALS14

  • A high-airflow exhaust fan designed to ventilate out heat, moisture, odor, and dust from various spaces.
  • Features an 8-speed manual controller utilizing PWM. See T-Series for temperature and humidity controls.
  • Innovative EC-motor with PWM-control maximizes airflow while reducing energy consumption and noise levels.
  • Features steel shutters, aluminum blades, and IP-44 rated to be highly resistant to liquid and dust.
  • Fan Size: 14” | Dimensions: 16.93 x 16.93 x 8.1 in. | Airflow: 1513 CFM | Noise: 68 dBA | Bearings: Dual Ball

PRODUCT DESCRIPTION

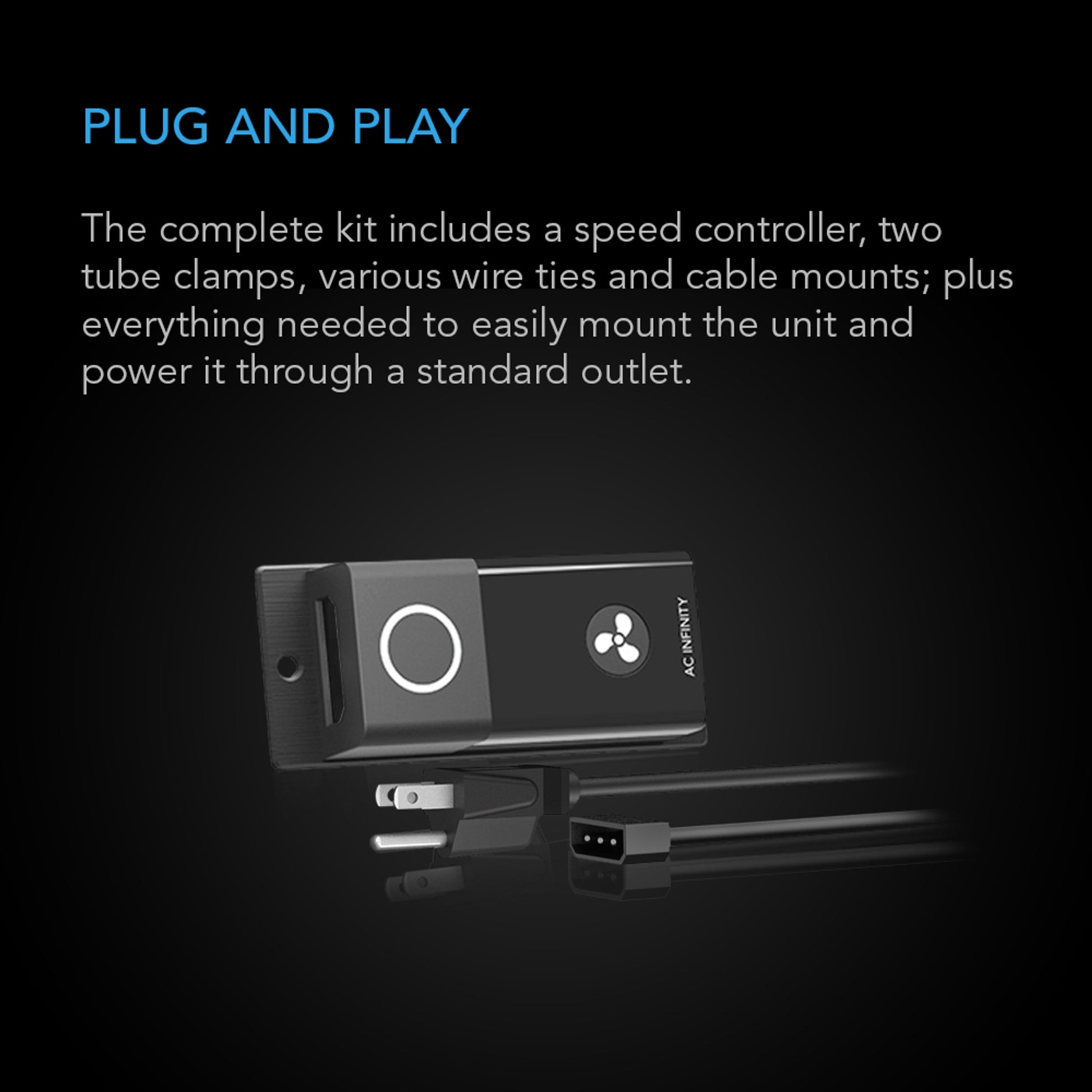

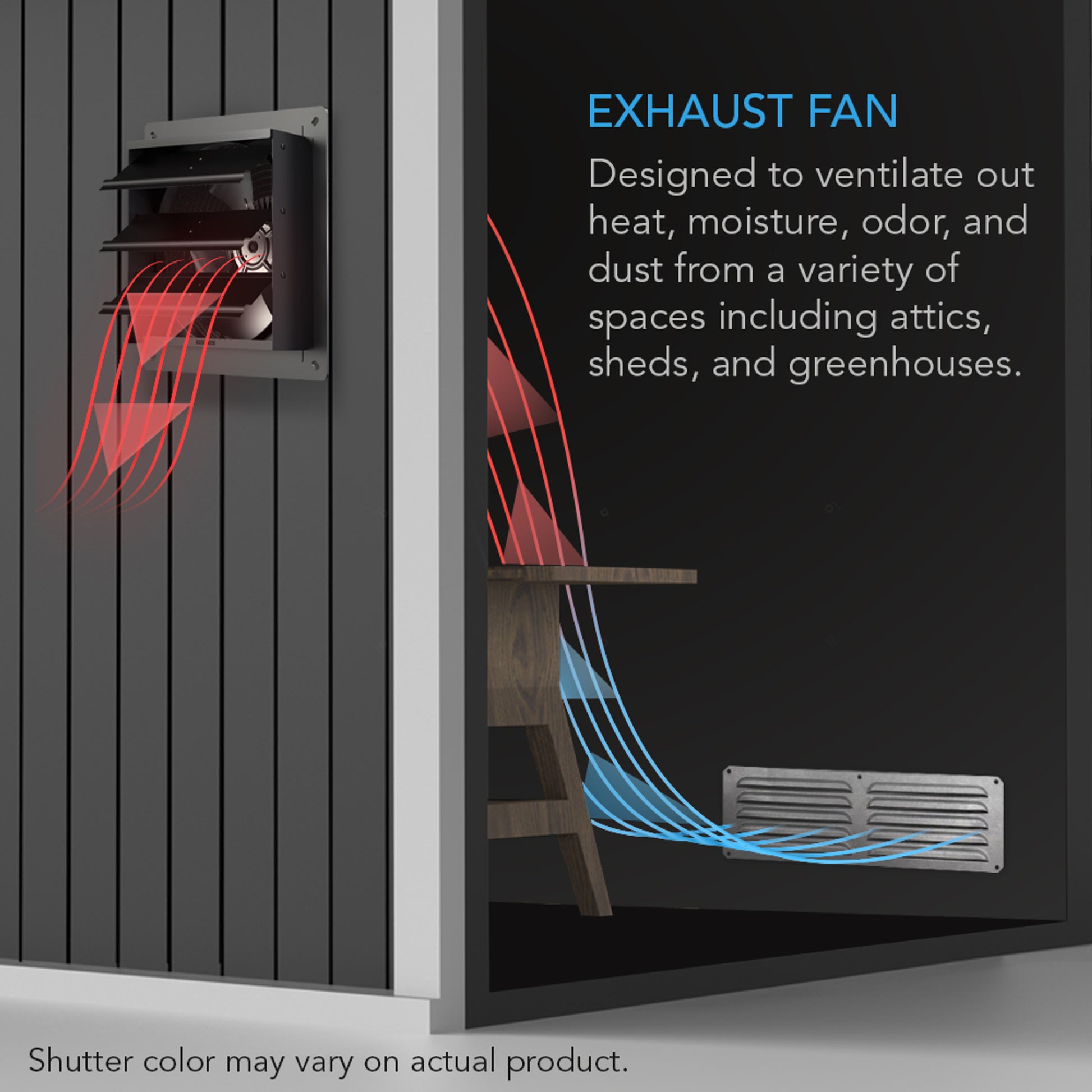

A high-airflow exhaust fan designed to cool and ventilate greenhouses, garages, attics, workshops, and sheds. The system can automatically eliminate heat, moisture, odor, and dust from enclosures, rooms and buildings. Features an inline speed controller utilizing PWM-technology. Innovative EC-motor with PWM-control maximizes airflow while reducing energy consumption and noise levels. Heavy-duty build features aluminum blades, steel wire guards, and steel shutters. Includes everything needed to mount the fan unit and power it through an outlet. This product is a part of the UIS™ platform of grow devices and smart controllers, designed to integrate with each other to achieve your ideal environment.

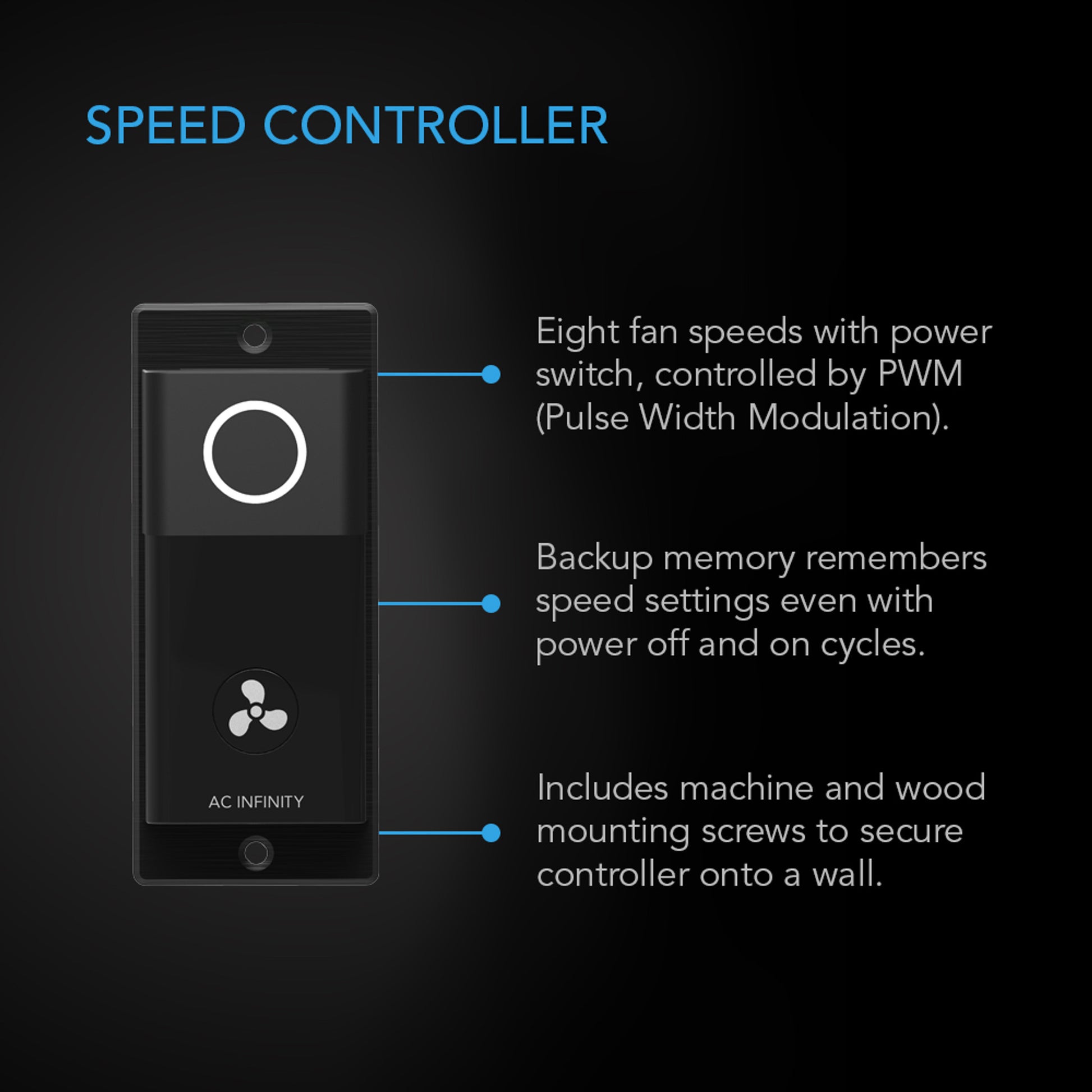

PRECISE SPEED CONTROLLER

The inline speed controller enables you to set the shutter fan’s speed to optimal noise and airflow levels for various environments. This shutter fan features an EC-motor that is precisely controlled using PWM (Pulse Width Modulation). This technology enables the fan's motor to be able to run smoothly at extremely low RPM speeds without generating motor noises and heat as seen on variable voltage controllers. Eight-speed options are available with a power switch, and backup memory.

HEAVY-DUTY PERFORMANCE

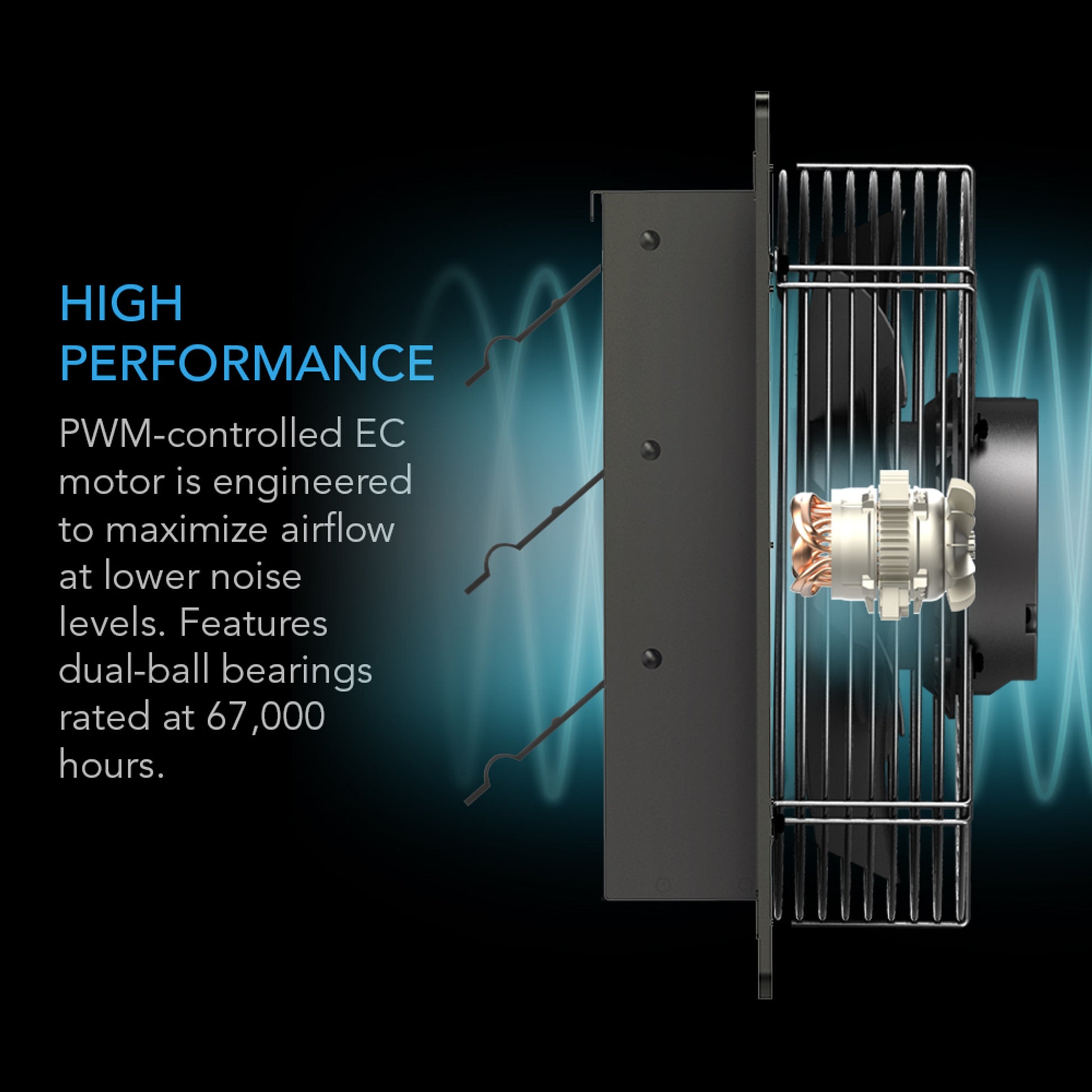

Features steel shutters that are weather and corrosion resistant, and automatically closes when not in use. The blades and impeller are constructed of lightweight aluminum, weight-balanced to reduce vibrations. Utilizing an innovative EC motor that is controlled electronically using PWM (Pulse Width Modulation), the fans can maximize airflow while reducing noise and power consumption. The fully-enclosed motor is also permanently lubricated and houses dual-ball bearings that are rated at 67,000 hours. The unit is IP-44 rated to be highly resistant to dust and liquids, and performs well even in harsh environments.

Product Identification
   Manufacturer    AC Infinity Inc.
   Product Name    AIRLIFT S14
   Product Model    AC-ALS14
   UPC Code    819137021457

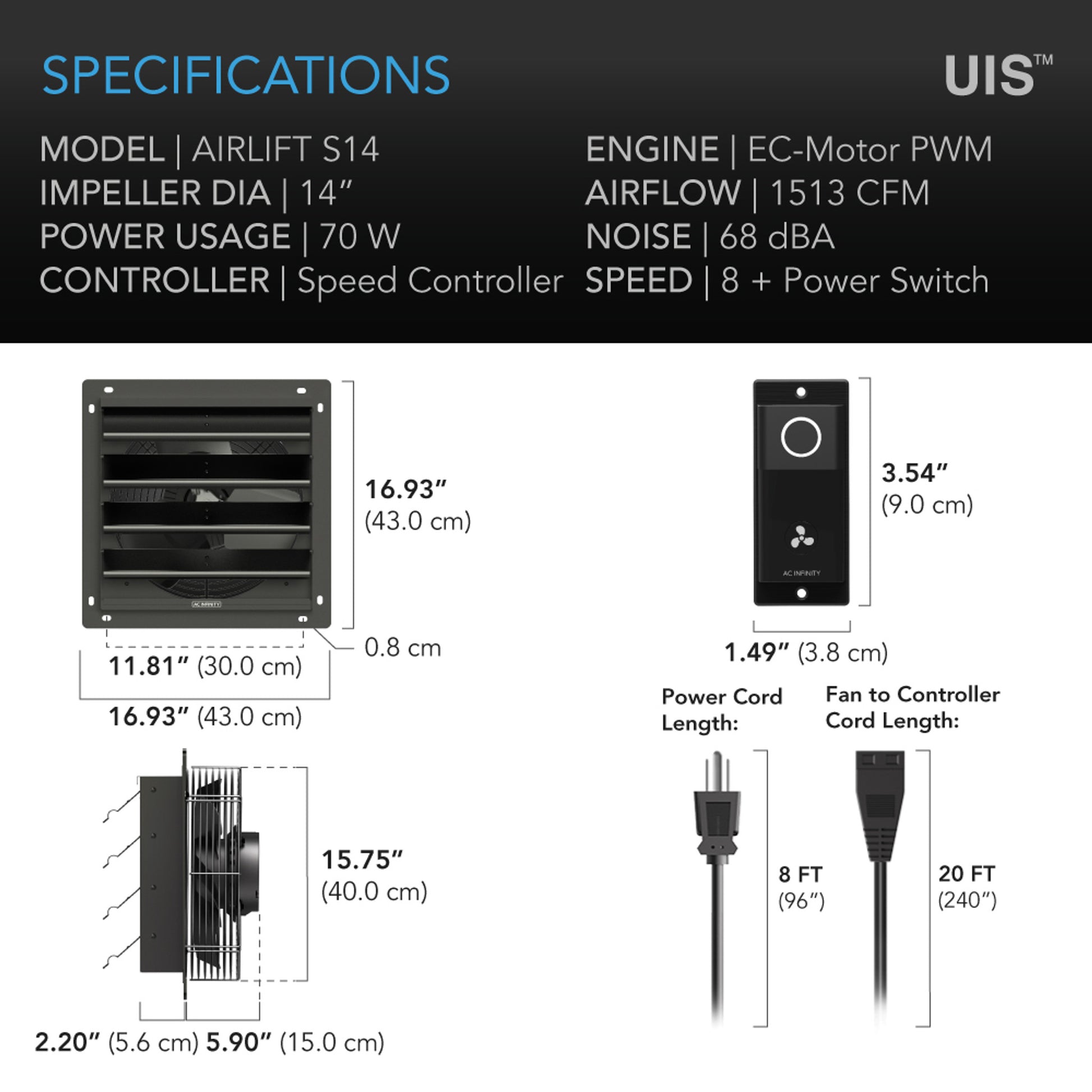

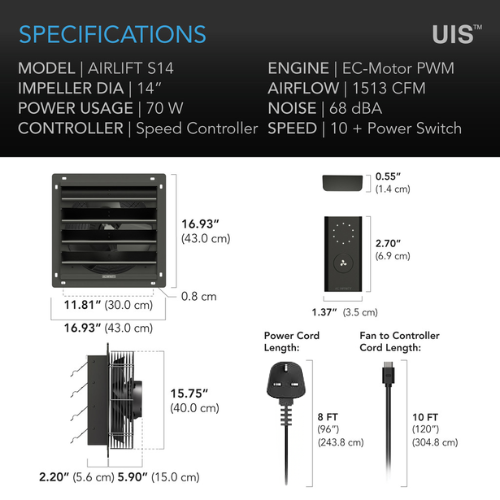

   Product and Mounting Dimensions - Fan Unit
   Total Dimensions    16.93 x 16.93 x 8.1 in (43.0 x 43.0 x 20.6 cm)
   Frontside Enclosure Dimensions    14.52 x 14.52 in (36.9 x 36.9 cm)
   Required Mounting Hole    14.68 x 14.68 in (37.3 x 37.3 cm)
   Hole to Hole Distance    15.75 x 15.74 in (40.0 x 40.0 cm)
   Screw Hole Size    Ø 0.27 in (Ø 0.7 cm)
   Cord Length to Controller    240 in (20 feet)
   Product and Mounting Dimensions - Controller
   Total Dimensions    3.34 x 2.95 x 0.51 in. (8.5 x 3.6 x 1.3 cm)
   Required Mounting Area    2.95 x 0.51 in. (3.6 x 1.3 cm)
   Hole to Hole Distance    2.87 in. (7.3 cm)
   Screw Hole Size    Ø 0.157 in. (Ø 0.4 cm)
   Cord Length to Plug    96 in. (8 feet)
   Product Performance and Technical Specs
   Total Airflow    1513 CFM
   Total Noise    68 dBA
   Static Pressure    70.46 Pa
   Operating Voltage    100-240V AC
   Power    70W
   Current    0.95 A
   Operating Humidity    35 to 85% RH
   Operating Temperature    32 to 140°F
   Fan Bearings    Dual Ball
   Life Expectancy    67,000 Hours
   CE Certification (Whole Product)
   CE Certification (Whole Product) PDF
   Product Manual
   Product Manual
   Installation Manual PDF

UK mains lead
