AC Infinity

Airplate S2, Home Theater and AV Cabinet Quiet Cooling Blower System, 6 Inch

Airplate S2, Home Theater and AV Cabinet Quiet Cooling Blower System, 6 Inch

Regular price £39.99 GBP
Regular price Sale price £39.99 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.
  • An ultra-quiet UL-certified blower system designed for cooling cabinets that requires minimal noise.
  • Low-profile aluminium frame is ideal where mounting space is limited or a smaller footprint is desired.
  • Features a multi-speed controller to set the fan’s speed to optimal noise and airflow levels.
  • Powered by wall outlet or USB port.
  • Dimensions: 5.8 x 2.0 x 4.7 in | Airflow: 35 CFM | Noise: 17 dBA | Bearings: Dual Ball

PRODUCT DESCRIPTION

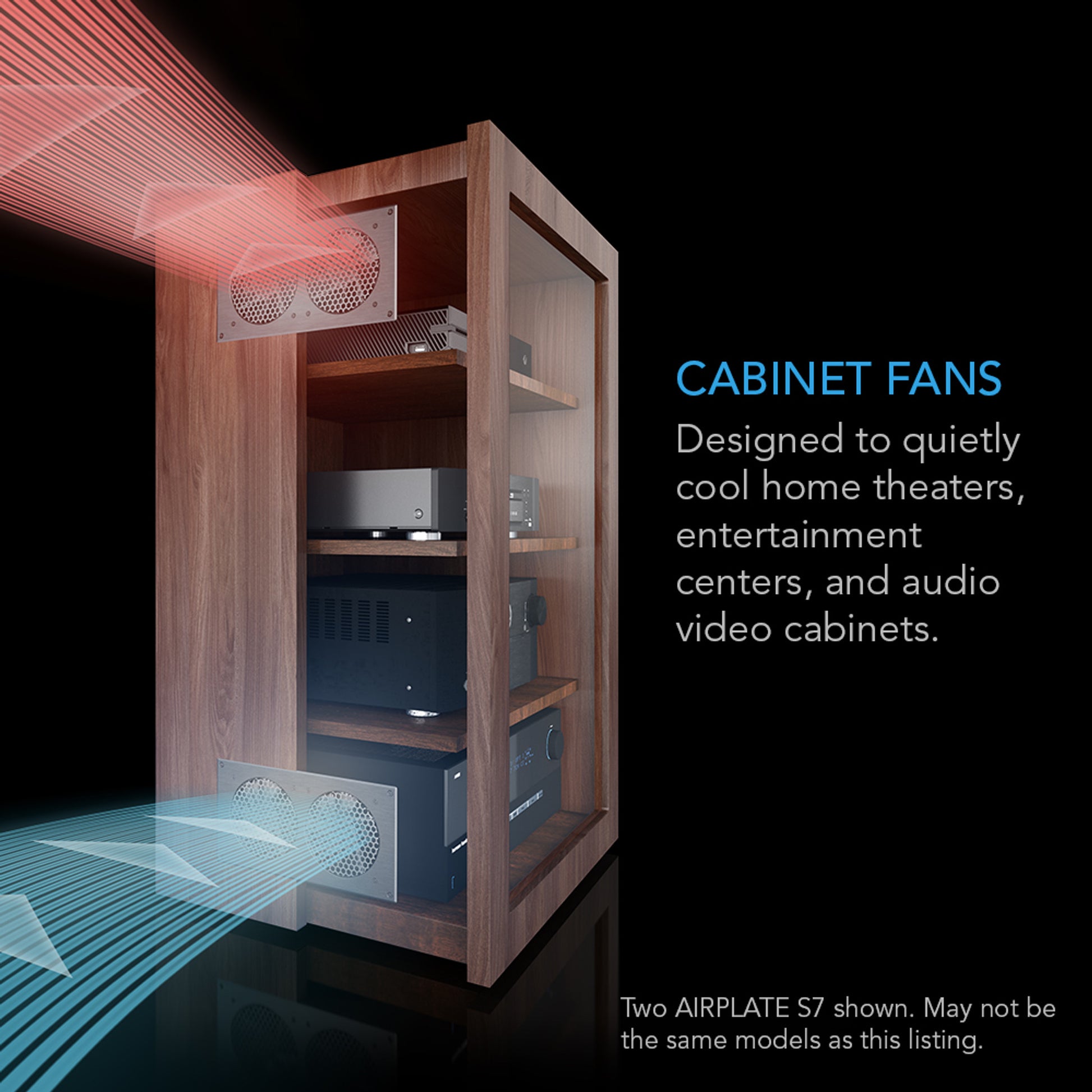

The ultra-quiet blower system is designed to cool home theaters, entertainment centers, and audio video cabinets. The unit's low-profile design is ideal where mounting space is limited or a smaller footprint is desired. Features a speed controller and 6 foot power cord. Included fans use a custom motor engineered to minimize noise during speed variations and are certified by CE and RoHS. Contains AC Infinity axial fans ACX-FBD1225(B)05W5 which meet UL-507 standards for safety under Underwriters Laboratories certificate E503903. Contains AC Infinity axial fans <> which meet UL-507 standards for safety under Underwriters Laboratories certificate E503903.  Containing dual ball bearings rated at 67,000 hours, the unit can be mounted in any direction. Features a CNC-machined anodized aluminum frame with a modern brushed black finish. Blowers are set to exhaust air out of the enclosure. Includes all necessary hardware to easily mount the unit onto a cabinet and power it through an USB port or standard wall outlet.

SPEED CONTROLLER AND BOOST ADAPTER

The in-line multi-speed controller with power switch allows setting the blower’s speed to optimal noise and airflow levels for various environments.

CONNECTING ADDITIONAL UNITS

For cabinets that requires more airflow, each unit can be connected to additional AIRPLATE S and T series cabinet fans. Up to four fans can share the same USB power source; and up to six fans can share the same thermal controller or wall outlet power source. AIRPLATE S7 contains two fans and AIRPLATE S9 contains three fans. All setups with more than four daisy-chained fans must have their inline speed controller set to high to prevent overload, e.g. two AIRPLATE S9 units daisy-chained together.

APPLICATIONS

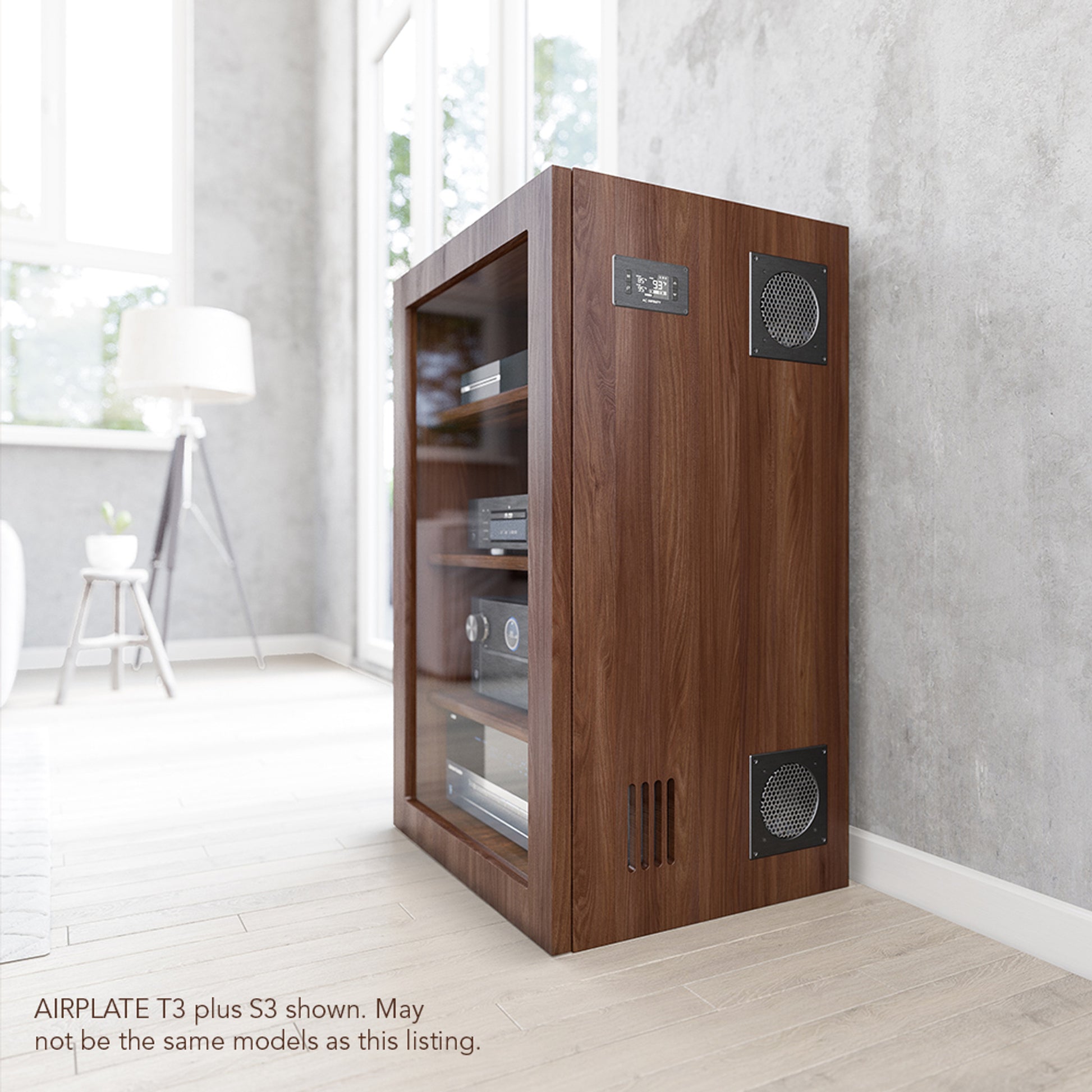

This ultra-quiet cooling system is popular in a variety of applications including home theaters, entertainment centers, and audio video cabinets; and smaller enclosures and racks holding computers, receivers, amplifiers, and other AV equipment.

  Product Identification
   Manufacturer    AC Infinity Inc.
   Product Name    AIRPLATE S2
   Product Model    AI-APS2
   UPC Code    854759004723

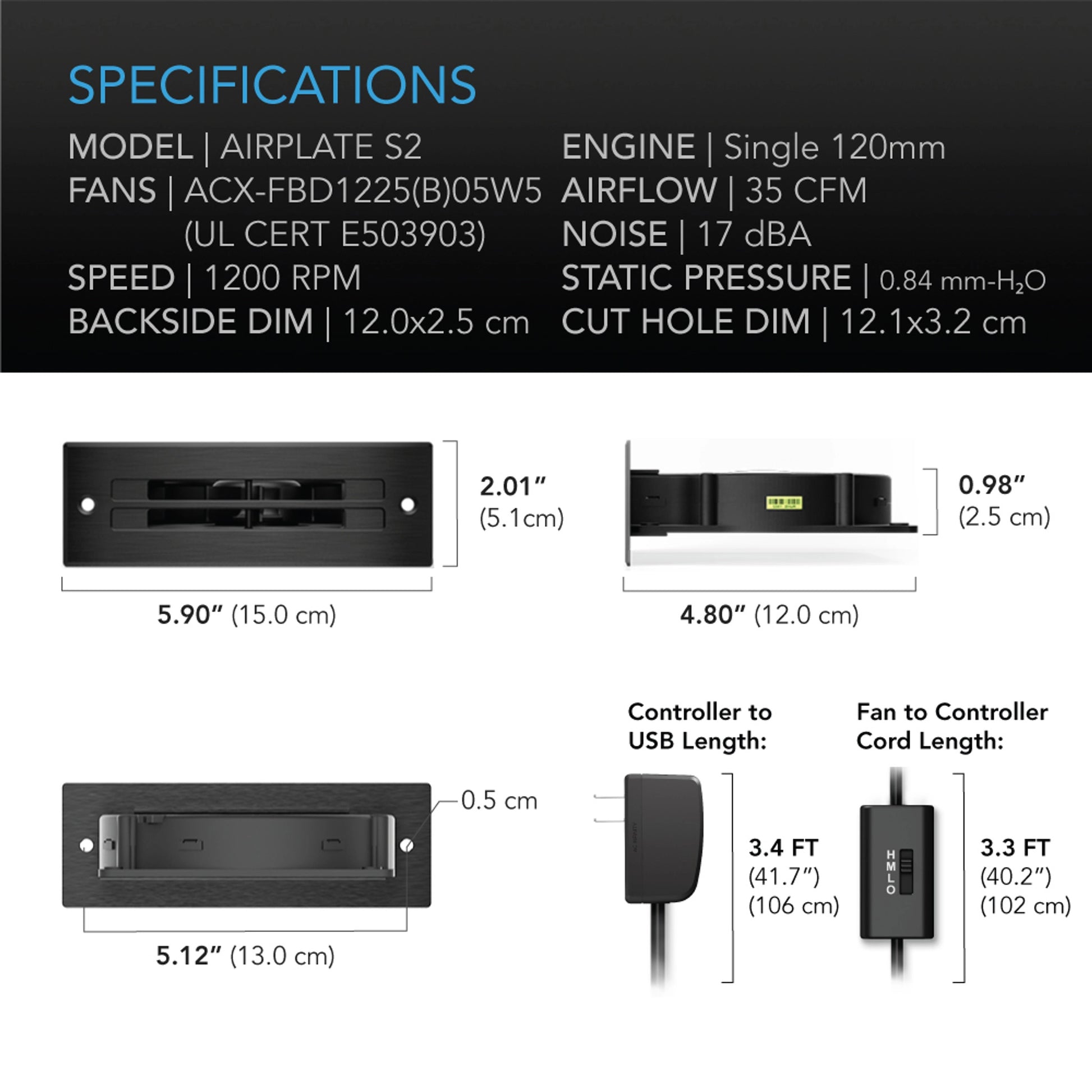

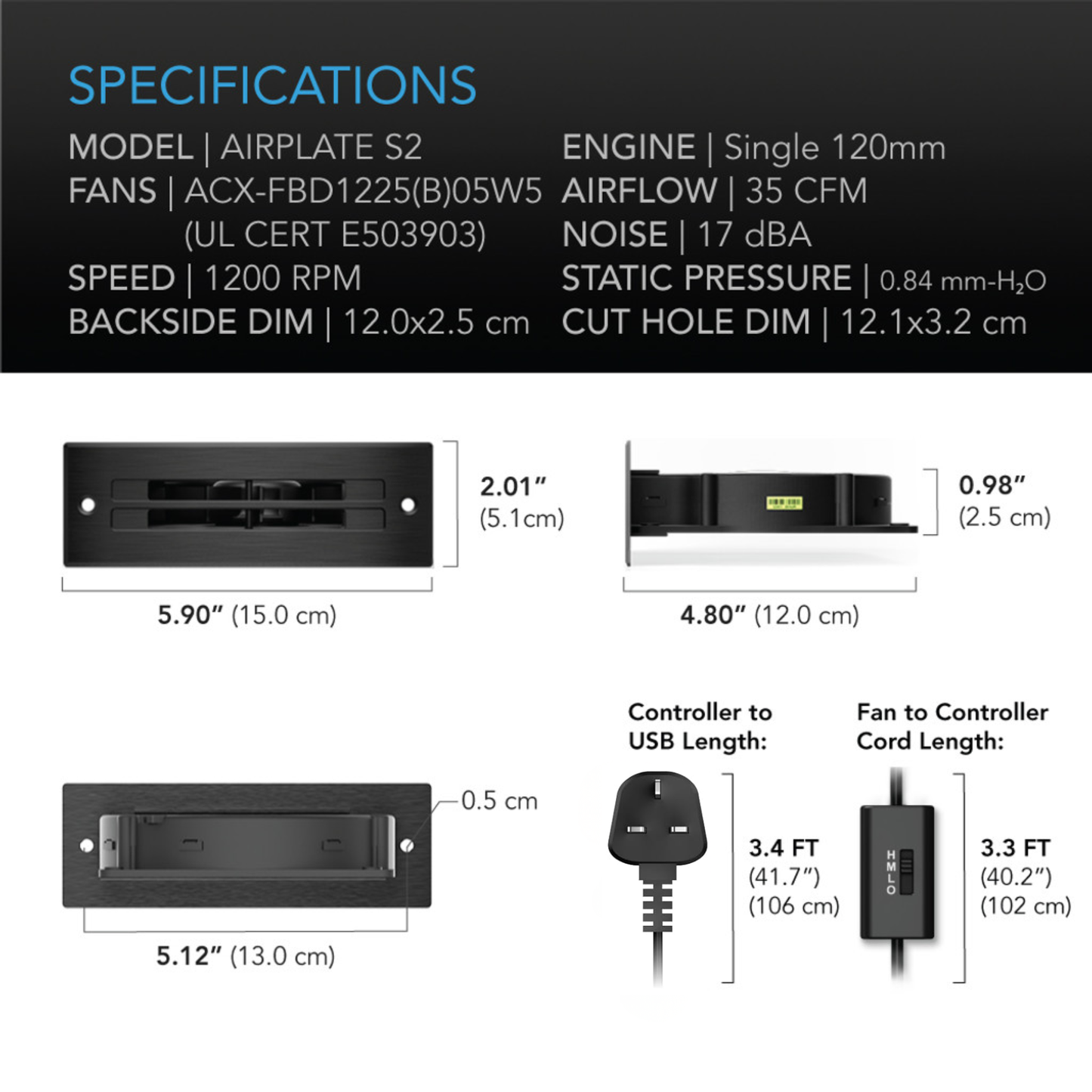

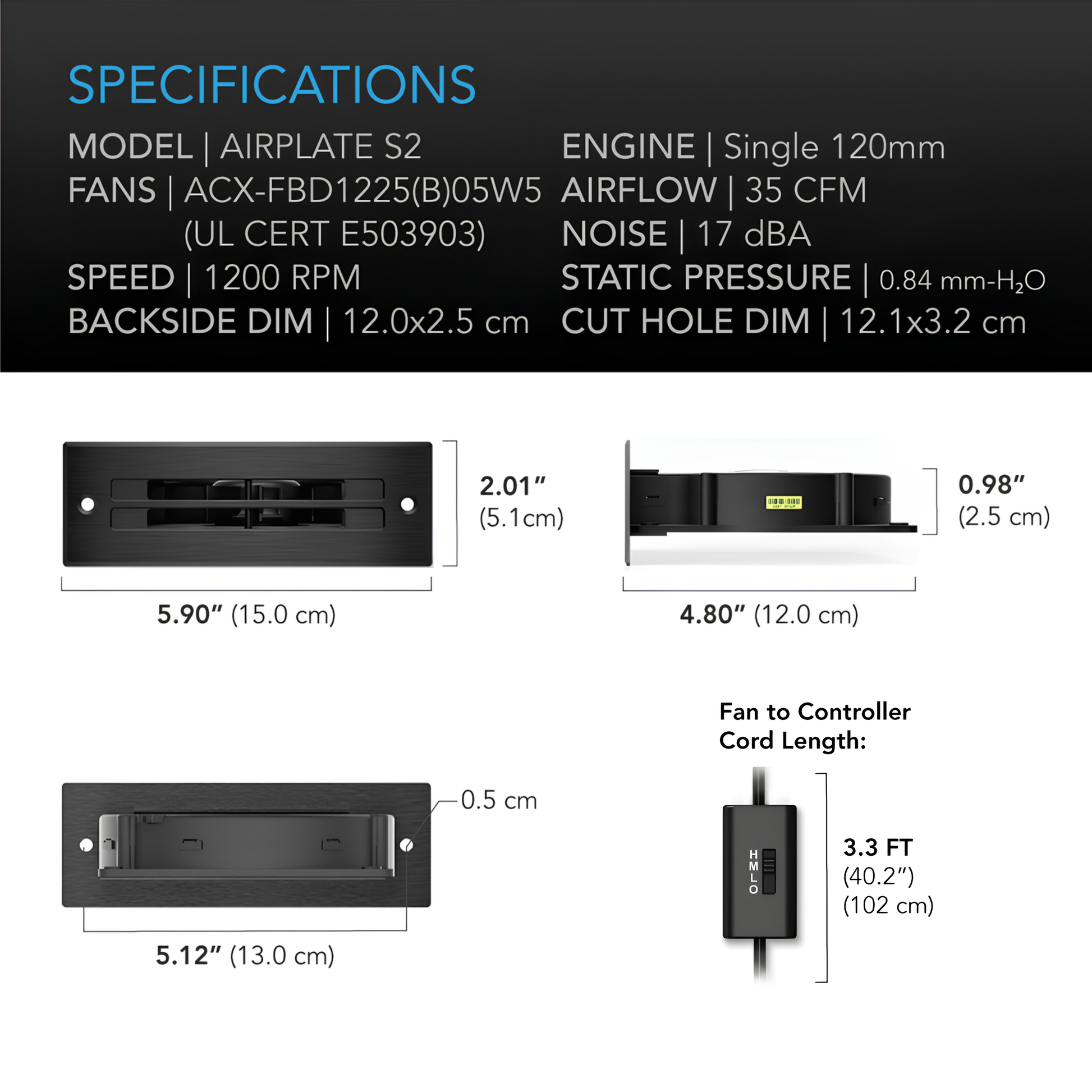

   Product and Mounting Dimensions - Fan Unit
   Total Dimensions    5.9 x 2.0 x 4.8 in (15 x 5.1 x 12.2 cm)
   Backside Enclosure Dimensions    4.72 x 0.98 in (12.0 x 2.5 cm)
   Required Mounting Hole    4.75 x 1.25 in (12.1 x 3.18 cm)
   Hole to Hole Distance    5.12 in (13 cm)
   Screw Hole Size    Ø 0.197 in (Ø 0.5 cm)
   Cord Length    72 in (6 feet)
   Mounting Template
   Installation Manual PDF
   Product Performance and Technical Specs
   Total Airflow    35 CFM
   Total Noise    17 dBA
   Static Pressure    0.84 mm-H2O
   Operating Voltage    3 to 7V DC
   Power    1.05 W
   Current    0.2 A
   Wall Adapter Input    100 to 240V AC - Compatible UK adapter supplied
   Operating Humidity    35 to 85% RH
   Operating Temperature    0 to 158°F
   Fan Bearings    Dual Ball
   Mounting Positions    Horizontal or Vertical
   L10 Life Expectancy    67,000 Hours
   Fan Quality Approvals    UL, CE, RoHS
   UL Certification (Fans Only)
   UL Certification (Fans Only) PDF
   CE Certification (Whole Product)
   CE Certification (Whole Product) PDF
   RoHS Cert. (Whole Product)
   Installation Manual PDF
   Product Manuals
   Fan Unit Manual
   Installation Manual PDF

Compatible Power Supply Included
