AC Infinity

Cabinet Ventilation Grille Black, 6 Inch

Cabinet Ventilation Grille Black, 6 Inch

Regular price £14.99 GBP
Regular price Sale price £14.99 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

Electrical items ship with UK power supply

AI-FMF120A

  • Designed to be installed into cabinets or walls to help increase ventilation.
  • Can also be used in conjunction with a fan system to act as an intake or exhaust vent.
  • Includes optional hardware to secure a 120mm fan onto the grille, and mount it into your cabinet or wall.
  • Features a CNC machined aluminum frame with a brushed black finish; and honeycomb grille insert.
  • Kit includes (4) wood mounting screws, (4) machine mounting screws with nuts, (4) fan mounting screws with nuts, and (1) 120mm spiral fan guard.

PRODUCT DESCRIPTION

The Cabinet Ventilation grille is a 6.3 by 6.3 inch metal grille that can be installed into cabinets and walls to help increase ventilation. It can also be used in conjunction with a fan system to act as a passive intake or exhaust vent. The kit includes an optional 120mm fan guard and hardware to secure a 120mm fan, the most popular size for computers and DIY applications, onto the grille. To mount your fan and grille into your cabinet or wall, you would need to cut a square hole approximately 5.04 by 5.04 inches. Features a CNC machined aluminum frame with a brushed black finish; pre-secured to a steel honeycomb grille with four screws. Information on the additional included hardware can be found below.

HARDWARE

Includes four wood screws and four machine screws with nuts to mount the ventilation grille onto a cabinet or wall. Also includes four 1.25-inch long machine screws with nuts to mount a 120 mm fan with the included 120mm fan guard onto the ventilation grille.

 Product Identification
   Manufacturer    AC Infinity Inc.
   Product Name    Cabinet Ventilation Grill Black, 6 Inch
   Product Model    AI-FMF120A
   UPC Code    854759004440

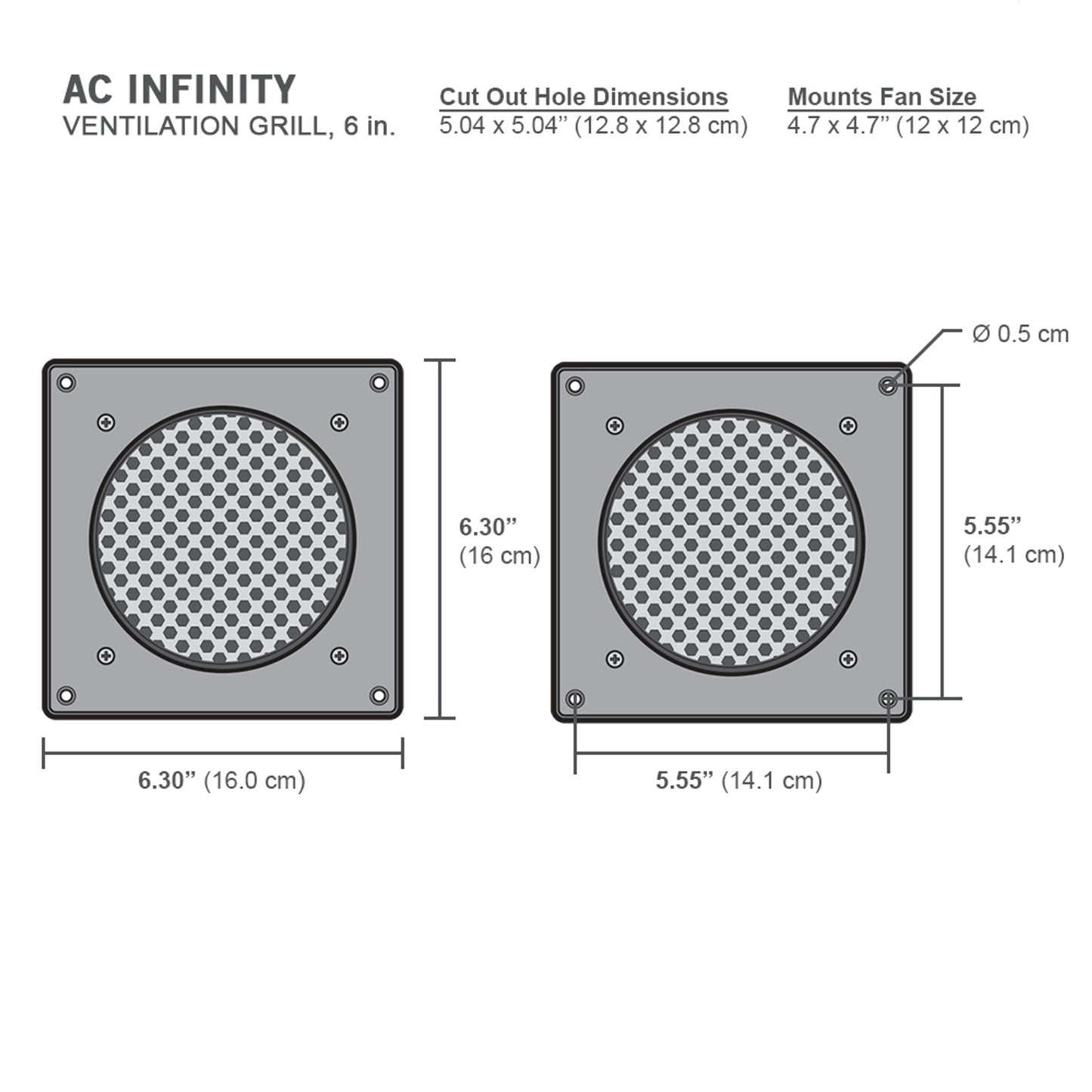

   Product and Mounting Dimensions
   Total Dimensions    6.30 x 6.30 x 0.12 in (16.0 x 16.0 x 0.3 cm)
   Required Mounting Hole    5.04 x 5.04 in (12.8 x 12.8 cm)
   Hole to Hole Distance    5.55 x 5.55 in (14.1 x 14.1 cm)
   Screw Hole Size    Ø 0.197 in (Ø 0.5 cm)
   Mounting Template
   Installation Manual PDF
   Product Performance and Technical Specs
   Number of Mountable Fans    1
   Mountable Fan Size    4.7 x 4.7 in (120 x 120 mm)
   Fan Guard Size    4.7 x 4.7 in (120 x 120 mm)

NA
