Cloudplate T5, Quiet Rack Cooling Fan System 1U, Rear Exhaust

Cloudplate T5, Quiet Rack Cooling Fan System 1U, Rear Exhaust

Regular price £169.99 GBP
Regular price Sale price £169.99 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

Electrical items ship with UK power supply

  • An intelligent fan system designed for cooling audio video, DJ, server, network, and IT equipment racks.
  • Protects rack-mount equipment from overheating, performance issues, and shortened lifespans.
  • Programmable thermostat controller with automated speed control, alarm warnings, and backup memory.
  • Premium anodized aluminum construction with CNC-machined detailing for a professional appearance.
  • Size: 1U Rack Space | Design: Rear Exhaust | Airflow: 40 to 180 CFM | Noise: 9 to 32 dBA | Bearings: Dual Ball

PRODUCT DETAILS

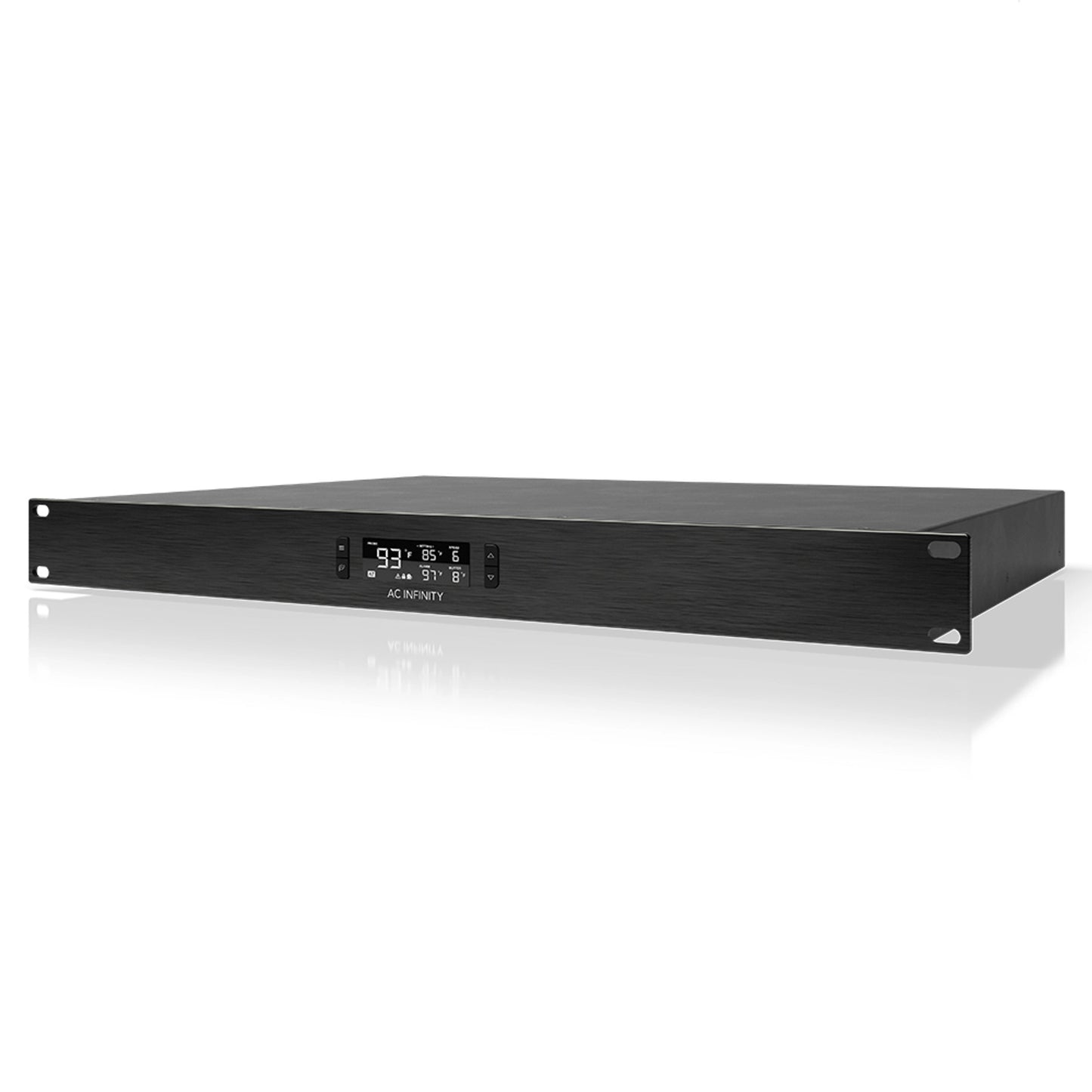

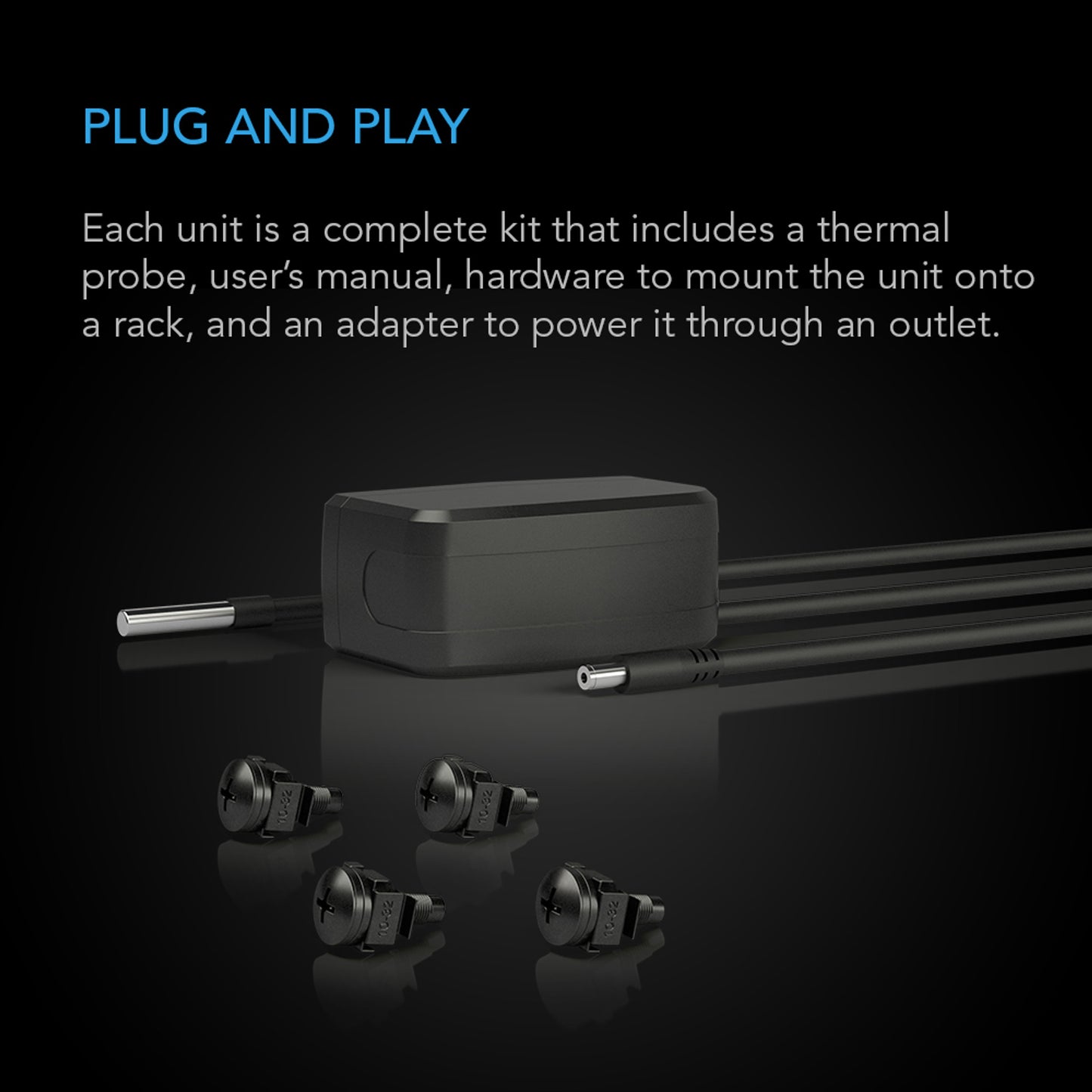

An intelligent cooling fan system designed to be mounted onto a wide range of 19-inch racks requiring quiet or high airflow cooling. Maintaining an optimal temperature for rack-mount equipment prevents overheating, ensures constant performance, and extends their lifespan. The LCD digital controller features a programmable thermostat with automated speed control, alarm warnings, status alerts, and backup memory. The system is housed in a solid aluminum construction that takes up one rack units of space (1U). Each aluminum frame is anodized with a light-brush finish, then the corners CNC-machined and edges symmetrically cut for a high-end professional appearance. This model holds three custom-engineered dual-ball bearing fans rated at 67,000 hours, and certified by CE and RoHS. The fans are set to exhaust out heated air out the rear and should be positioned near the top of the rack; a front exhaust version of this model is available, sold separately. This complete kit includes the 1U fan unit, corded 6-ft thermal probe, user’s manual, rack mount screws, cage nuts, and corded 6-ft power plug cord.

INTELLIGENT COOLING

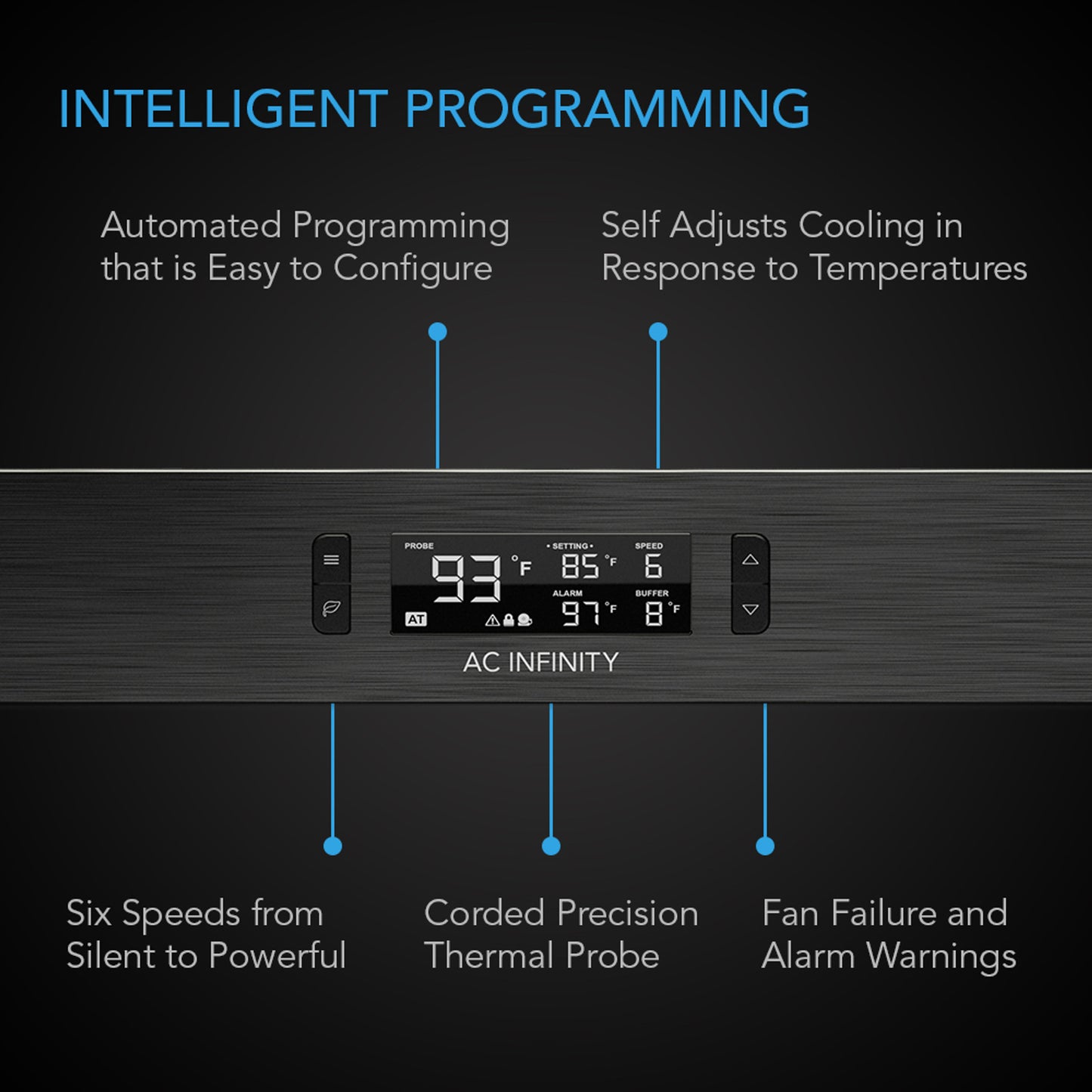

Programming includes an easy-to-use thermostat and a SMART mode that automatically adjusts the fan’s speed to react to varying temperatures. Additional features include alarm alerts, fan failure triggers, power savings setting, display lock, and backup memory. Six fan speeds are available with three screen brightness settings. Behind the unit is an expansion port that can control another CLOUDPLATE unit or an AC Infinity rack roof dual-fan kit.

PERFORMANCE AND APPLICATIONS

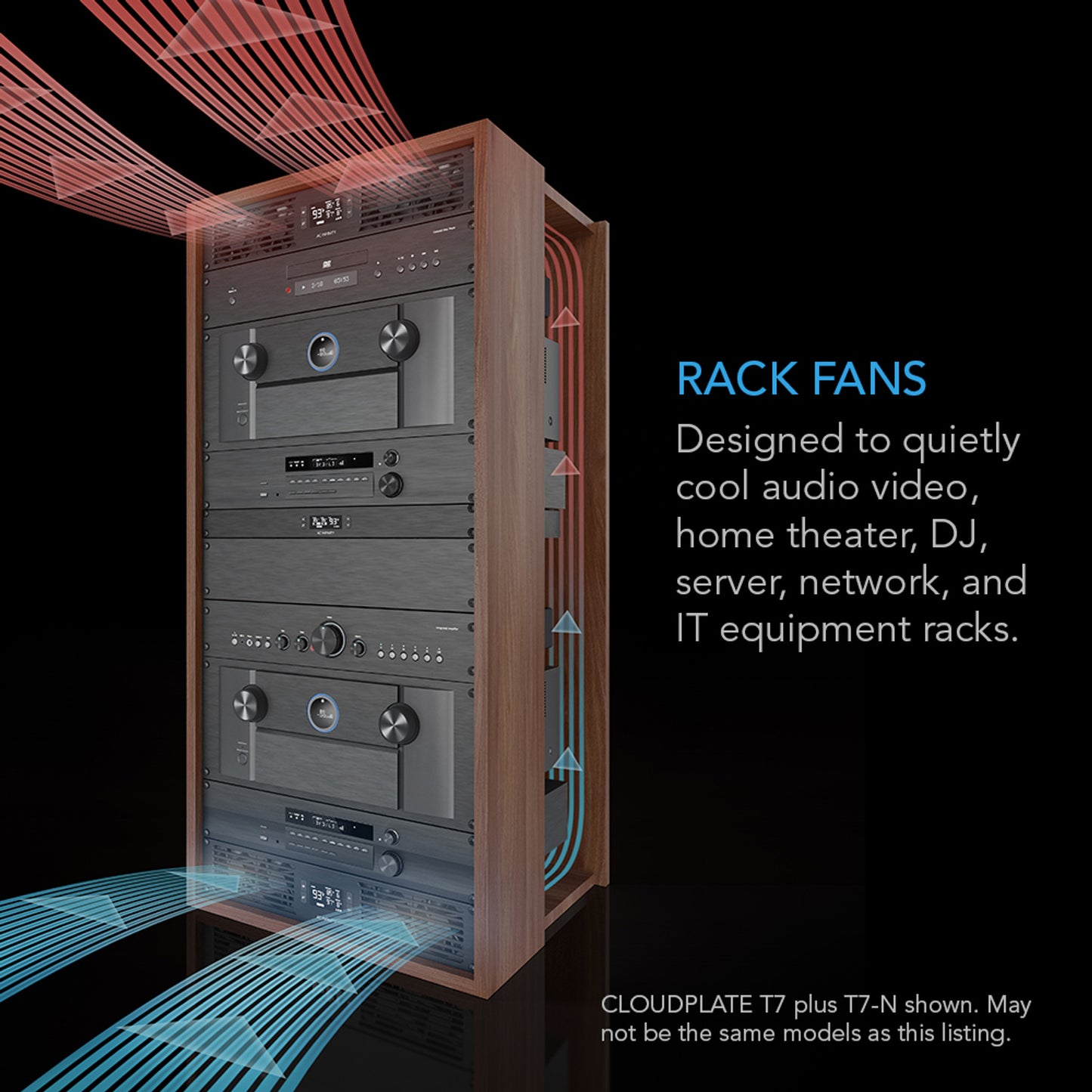

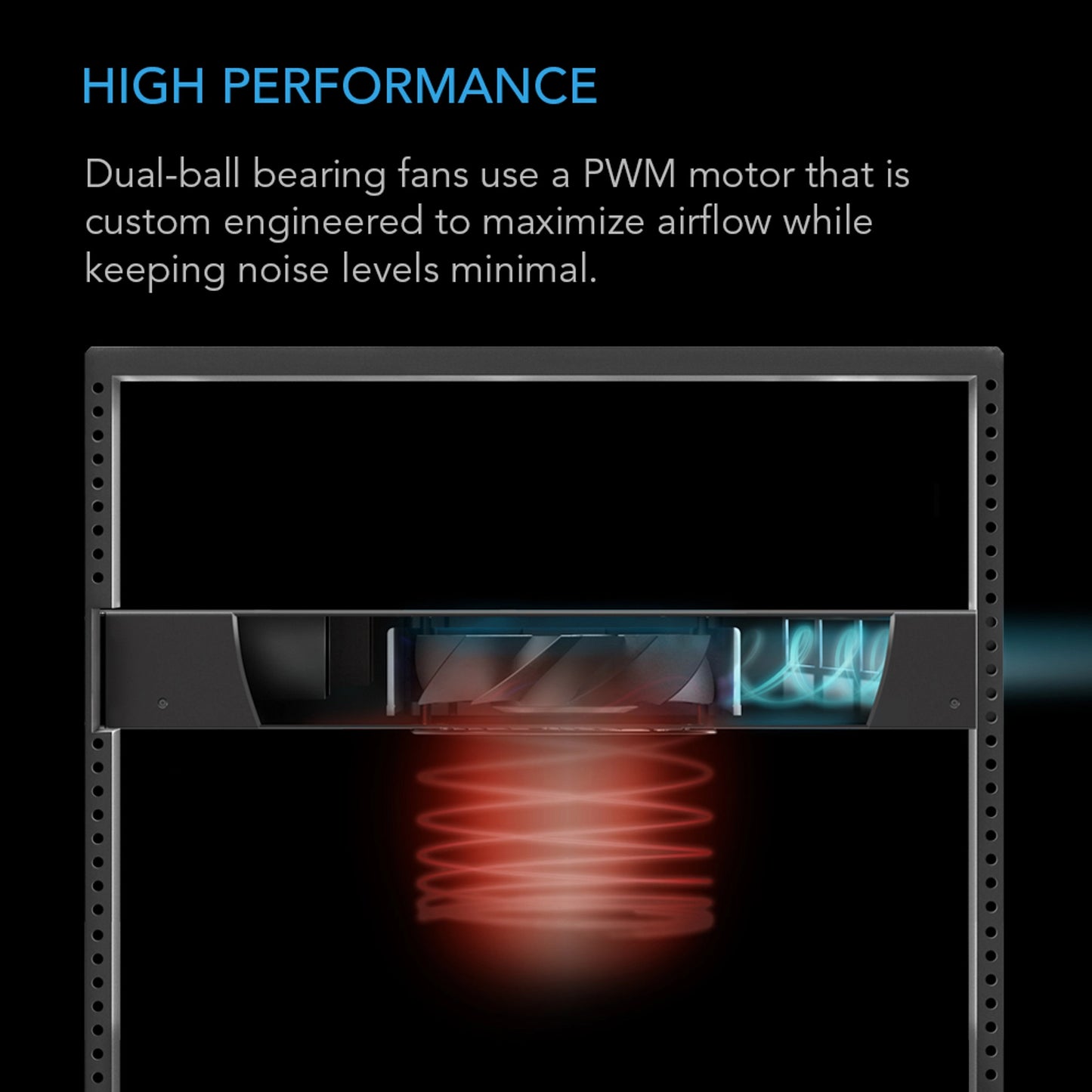

This 1U rack cooling system features programmable fan speed control, enabling it to work for a wide range of rack mount applications. With a noise level that can reach 9 dBA, the fan system can be used for environments where low or minimal noise is required such as home theater, studio, DJ, and audio video racks. A max airflow rating of 180 CFM will provide sufficient cooling to server, network, IT and equipment racks requiring high airflow. This fan system contains premium dual-ball bearings, allowing it to be mounted horizontally or vertically.

   Product Identification
   Manufacturer    AC Infinity Inc.
   Product Name    CLOUDPLATE T5
   Product Model    AI-CPT5
   UPC Code    819137020009

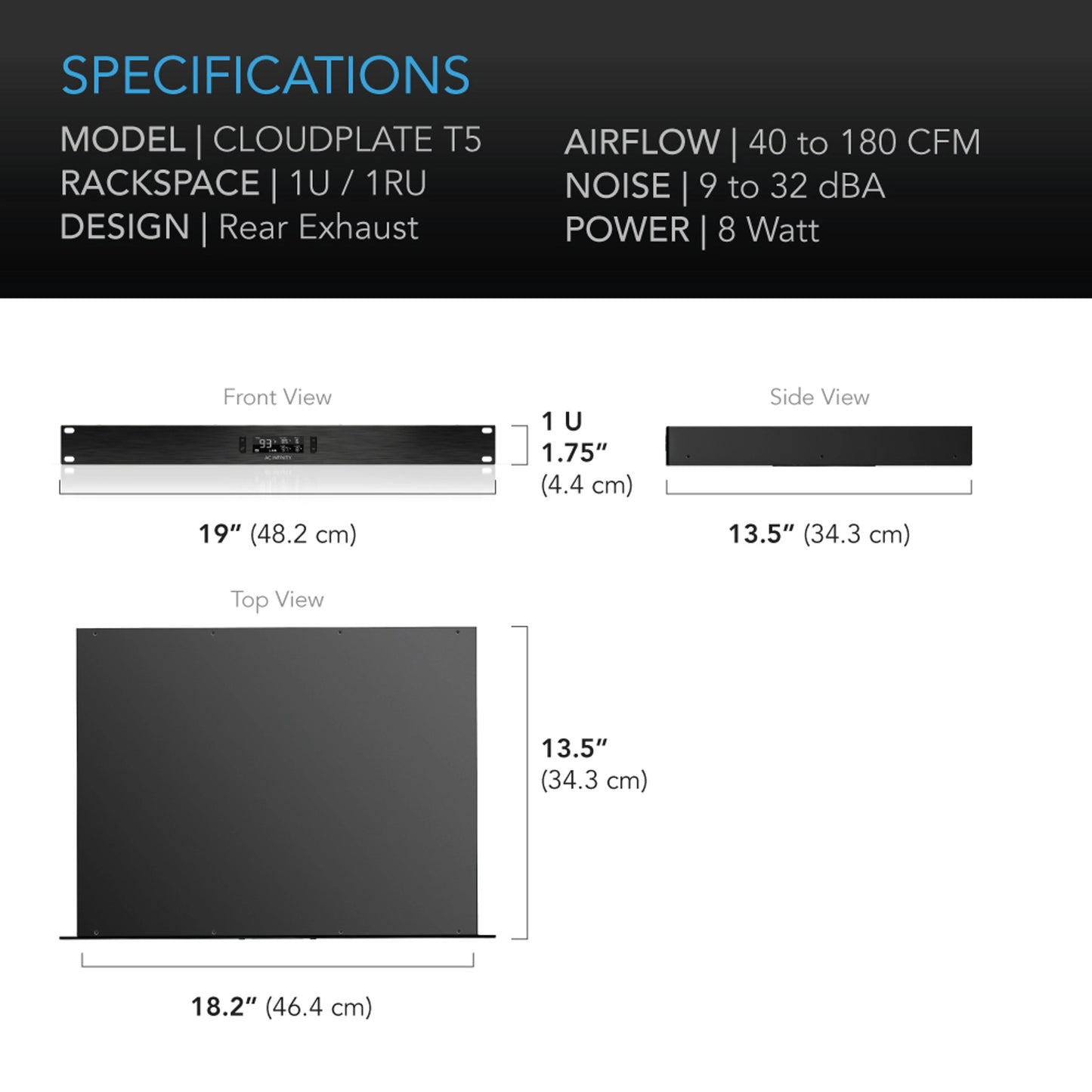

   Product and Mounting Dimensions
   Total Dimensions    19 x 1.75 x 13.5 in. (48.2 x 4.4 x 34.3 cm)
   Rack Mount Size    One Rack Unit (1U)
   Screw Hole Size    Ø .24 x 0.35 in. (Ø 6.1 x 9.0 mm) Obround
   Hole to Hole Distance    18.2 x 1.25 in. (46.4 x 3.175 cm)
   Display Size    2.25 x 0.75 in. (4.7 x 1.9 cm)
   Probe Length    72 in. (6 feet)
   Cord Length    72 in. (6 feet)
   Product Performance and Technical Specs
   Design    Rear Exhaust
   Total Airflow    40 to 180 CFM
   Total Noise    9 to 32 dBA
   Static Pressure    2.56 mm-H2O
   Operating Voltage    12V DC
   Power    8 W
   Current    0.67 A
   Wall Adapter Input    100 to 240V AC - Compatible UK adapter supplied
   Operating Humidity    35 to 85% RH
   Operating Temperature    0 to 158°F
   Fan Bearings    Dual Ball
   Mounting Positions    Horizontal or Vertical
   L10 Life Expectancy    67,000 Hours
   CE Certification (Whole Product)
   CE Certification (Whole Product) PDF
   RoHS Cert. (Whole Product)
   Installation Manual PDF
   Product Manuals
   Fan Unit Manual
   Installation Manual PDF

Compatible Power Supply Included
