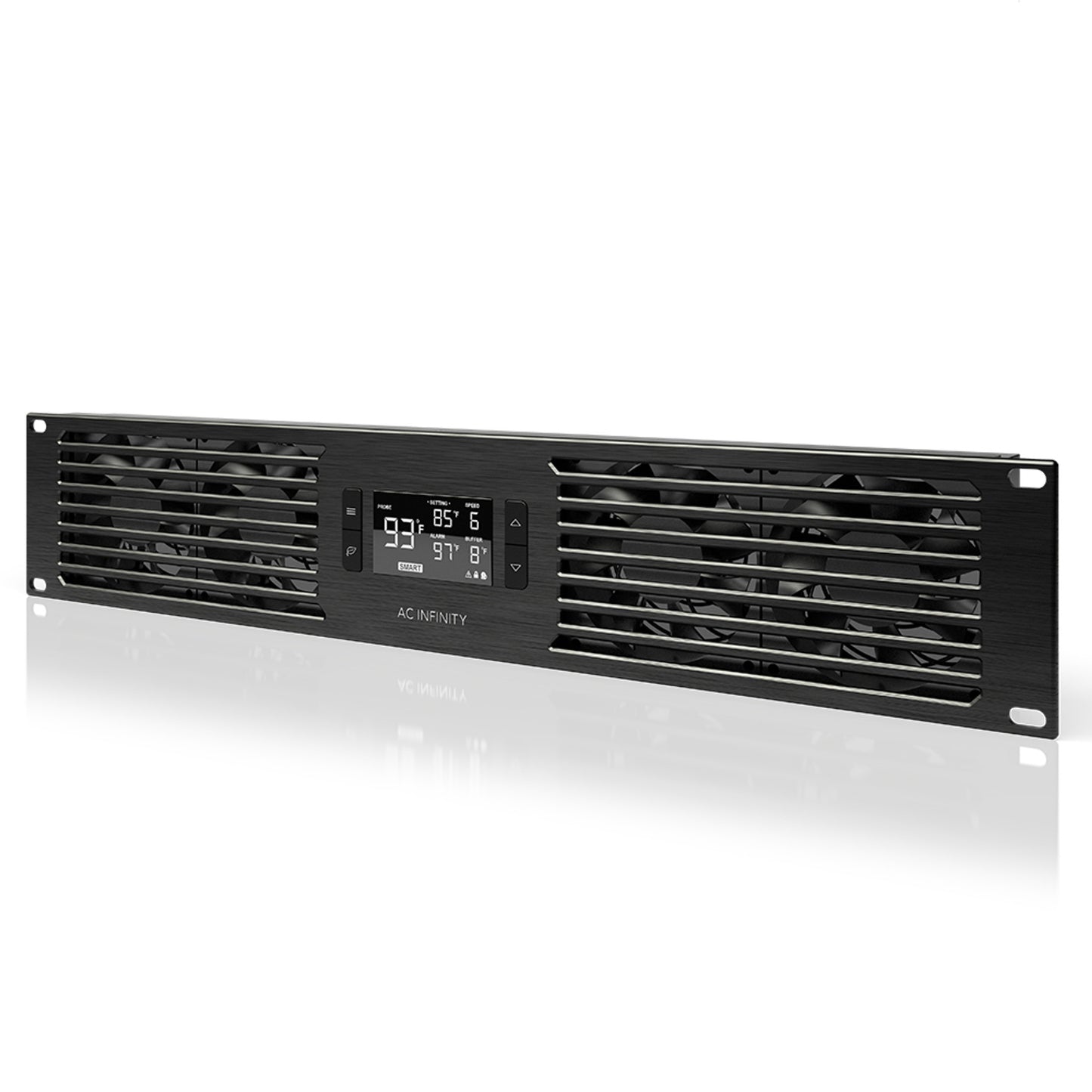

Cloudplate T7-N, Quiet Rack Cooling Fan System 2U, Intake
Cloudplate T7-N, Quiet Rack Cooling Fan System 2U, Intake
Electrical items ship with UK power supply

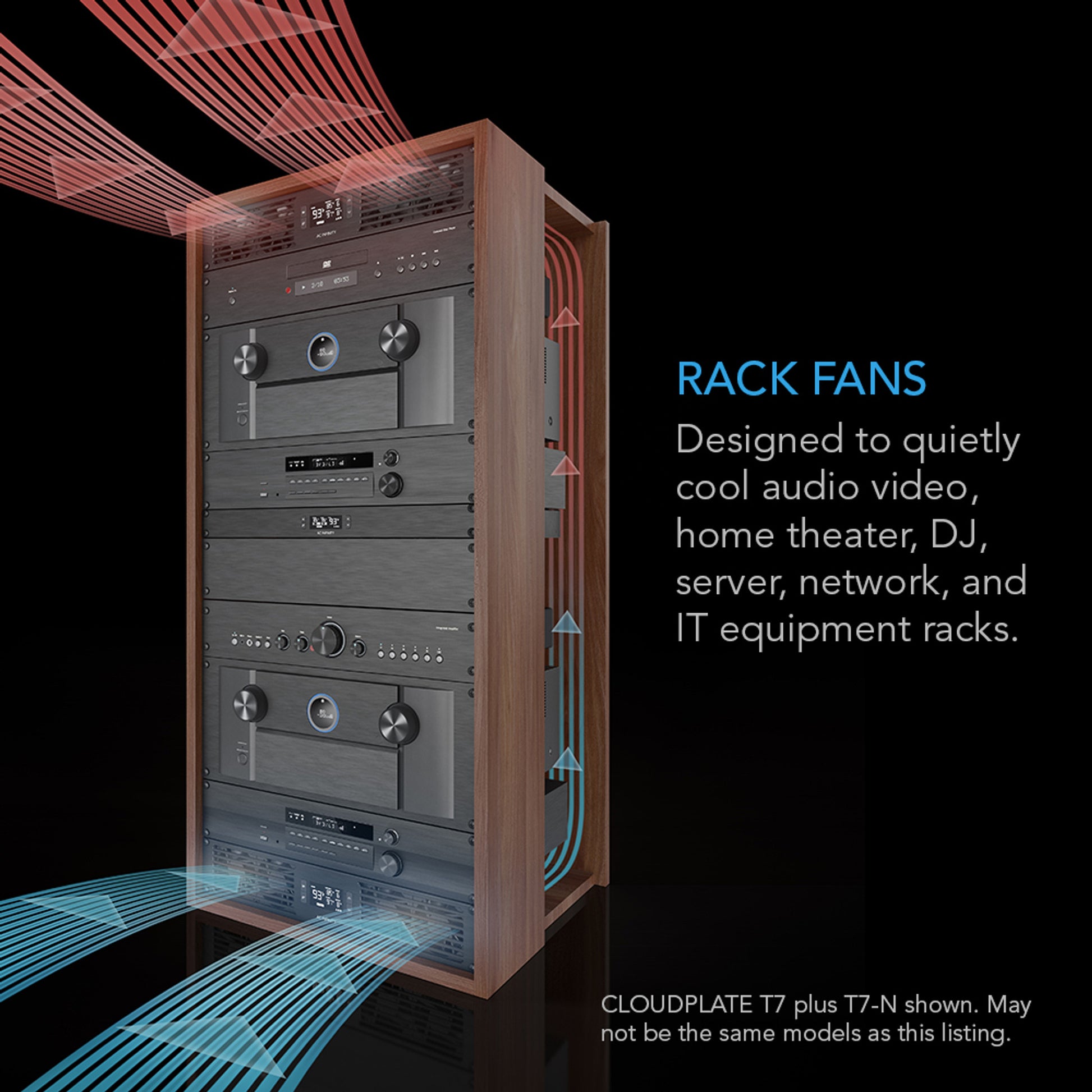

- An intelligent fan system designed for cooling audio video, DJ, server, network, and IT equipment racks.
- Protects rack-mount equipment from overheating, performance issues, and shortened lifespans.
- Programmable thermostat controller with automated speed control, alarm warnings, and backup memory.
- Premium anodized aluminum construction with CNC-machined detailing for a professional appearance.
- Size: 2U Rack Space | Design: Intake | Airflow: 50 to 220 CFM | Noise: 10 to 36 dBA | Bearings: Dual Ball
PRODUCT DETAILS

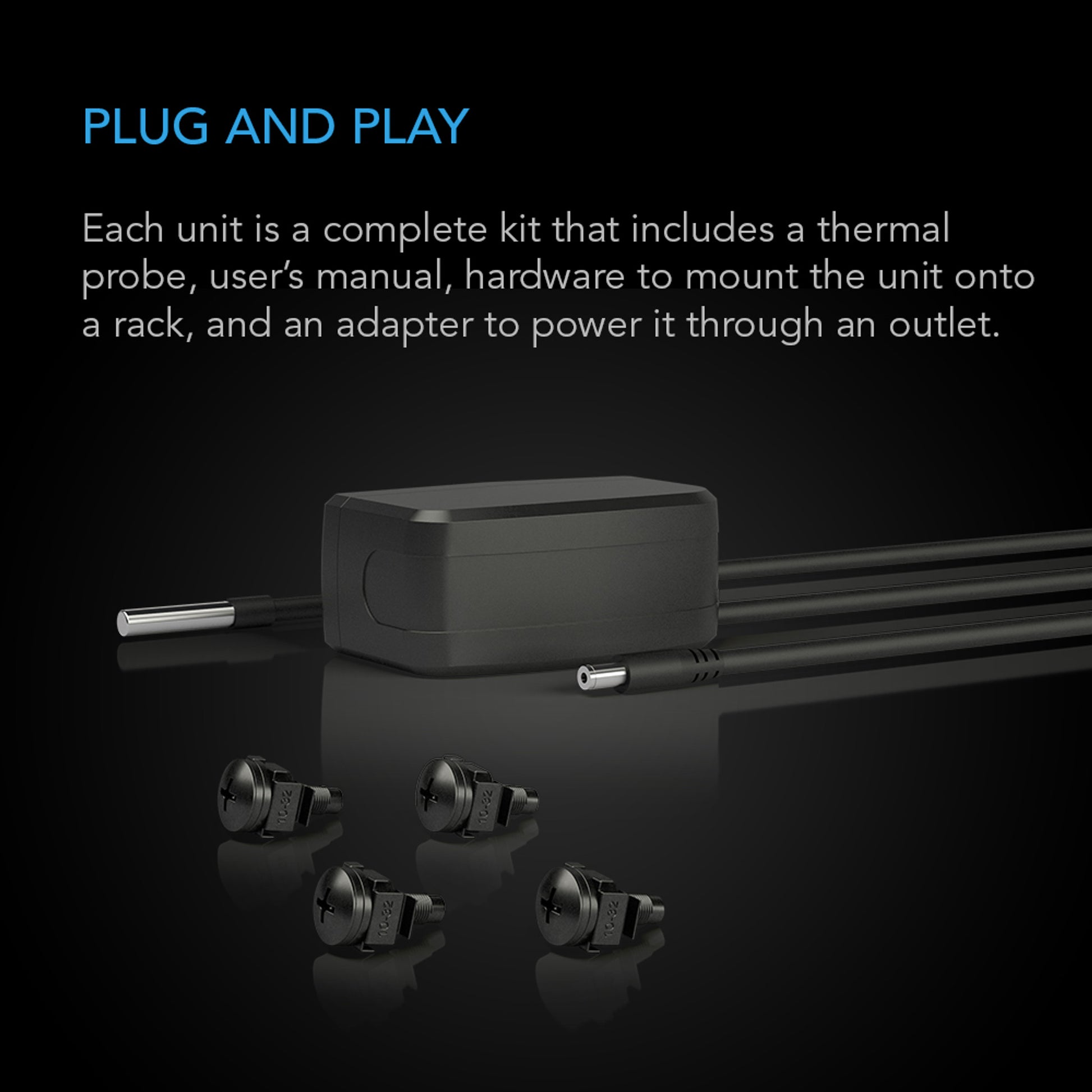

An intelligent cooling fan system designed to be mounted onto a wide range of 19-inch racks requiring quiet or high airflow cooling. Maintaining an optimal temperature for rack-mount equipment prevents overheating, ensures constant performance, and extends their lifespan. The LCD digital controller features a programmable thermostat with automated speed control, alarm warnings, status alerts, and backup memory. The system is housed in a solid aluminum construction that takes up two rack units of space (2U). Each aluminum frame is anodized with a light-brush finish, then the corners CNC-machined and edges symmetrically cut for a high-end professional appearance. This model holds four custom-engineered dual-ball bearing fans rated at 67,000 hours, and certified by CE and RoHS. The fans are set to intake cooler air and should be positioned near the bottom of the rack; an exhaust version of this model is available, sold separately. This complete kit includes the 2U fan unit, corded 6-ft thermal probe, user’s manual, rack mount screws, cage nuts, and corded 6-ft power supply.
INTELLIGENT COOLING

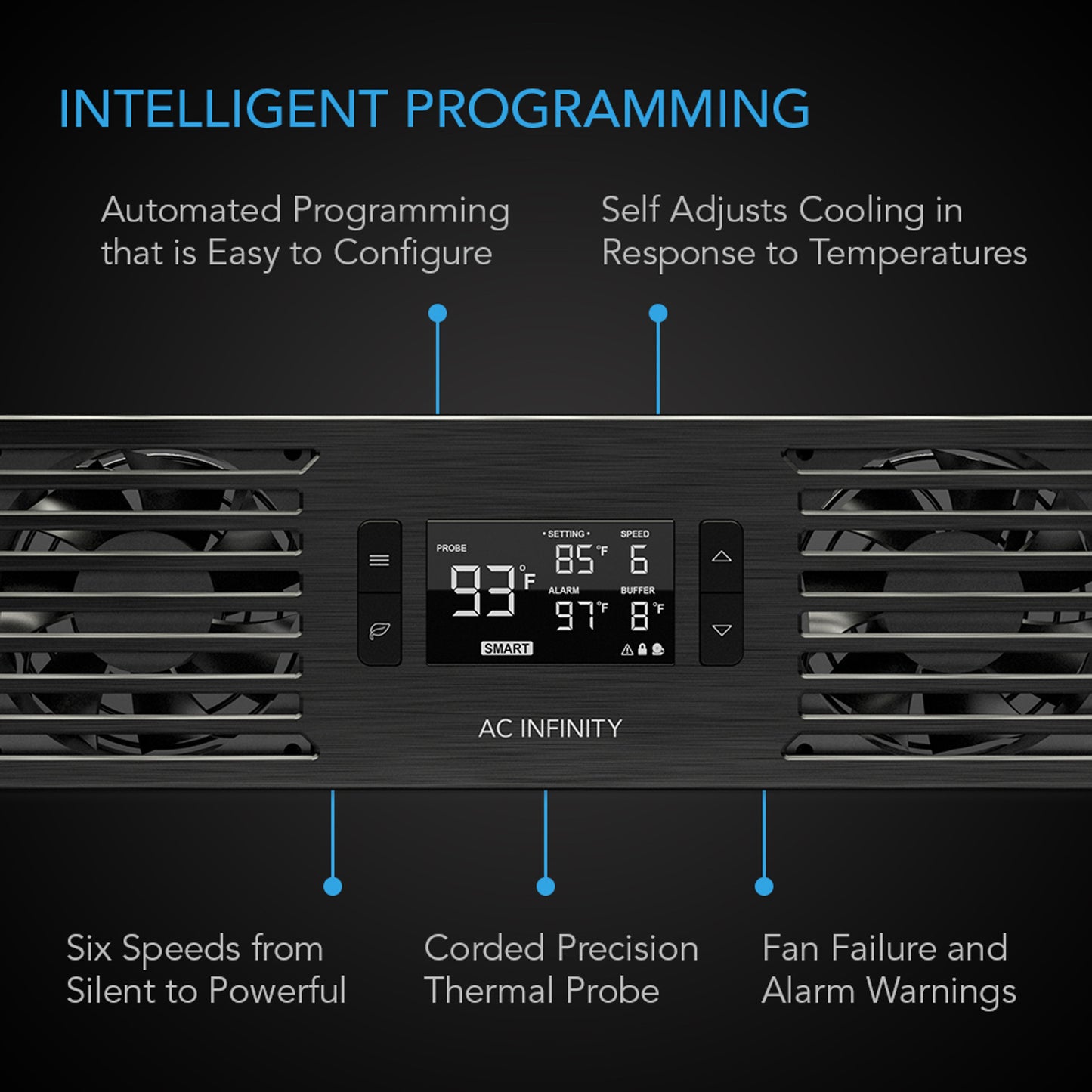

Programming includes an easy-to-use thermostat and a SMART mode that automatically adjusts the fan’s speed to react to varying temperatures. Additional features include alarm alerts, fan failure triggers, power savings setting, display lock, and backup memory. Six fan speeds are available with three screen brightness settings. Behind the unit is an expansion port that can control another CLOUDPLATE unit or an AC Infinity rack roof dual-fan kit.
PERFORMANCE AND APPLICATIONS

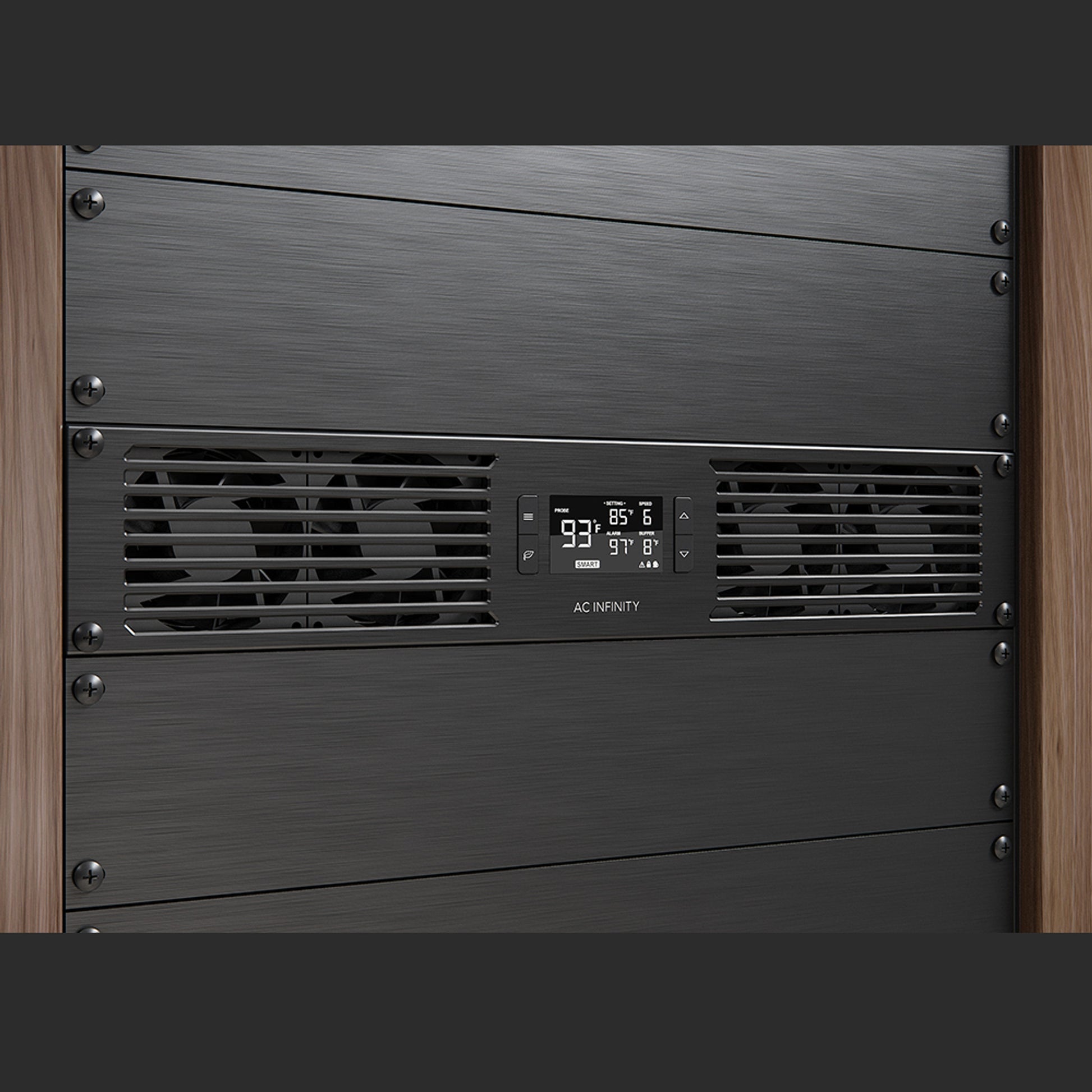

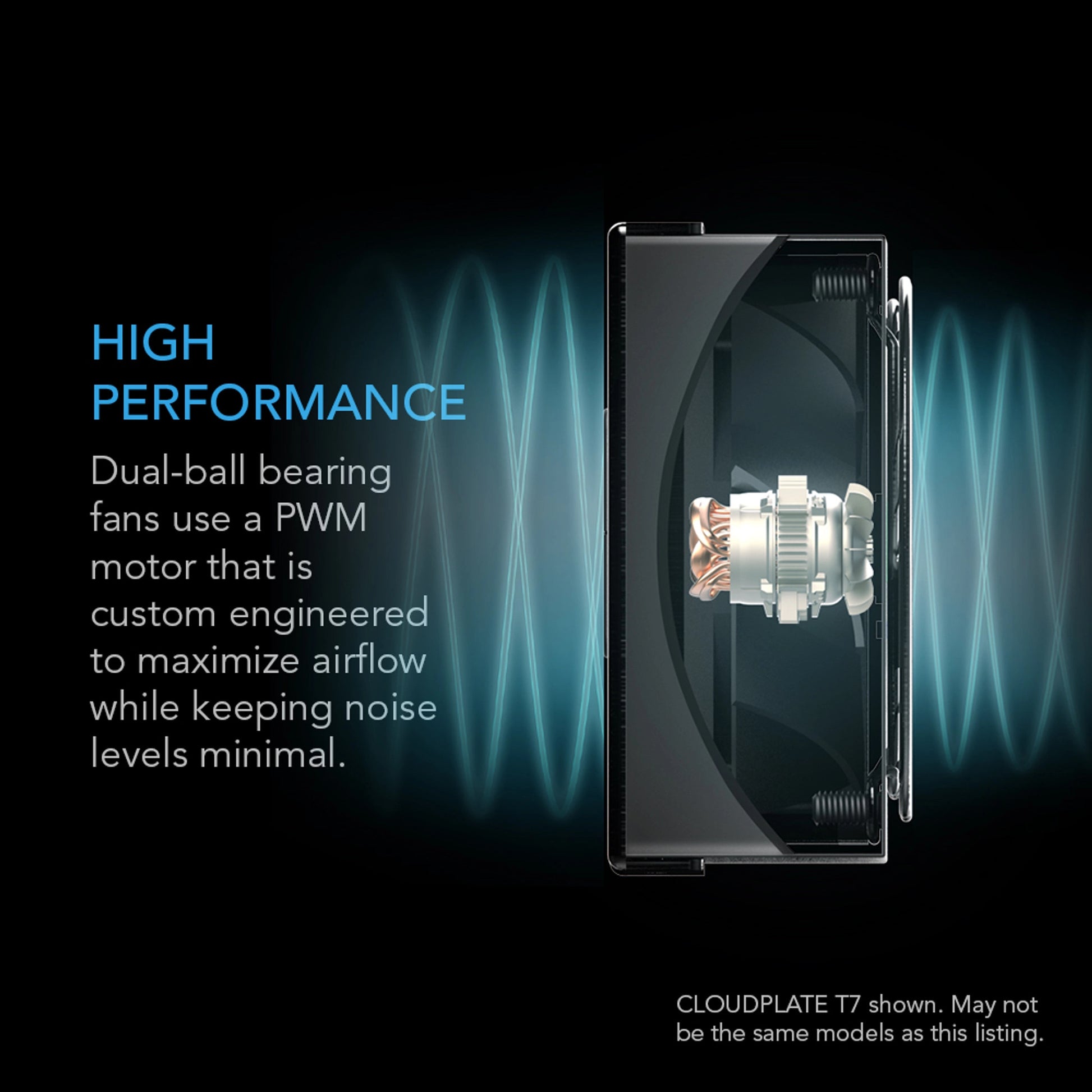

This 2U rack cooling system features programmable fan speed control, enabling it to work for a wide range of rack mount applications. With a noise level that can reach 10 dBA, the fan system can be used for environments where low or minimal noise is required such as home theater, studio, DJ, and audio video racks. A max airflow rating of 220 CFM will provide sufficient cooling to server, network, IT and equipment racks requiring high airflow. This fan system contains premium dual-ball bearings, allowing it to be mounted horizontally or vertically.
Product Identification | |
Manufacturer | AC Infinity Inc. |
Product Name | CLOUDPLATE T7-N |
Product Model | AI-CP2H |
UPC Code | 854759004518 |

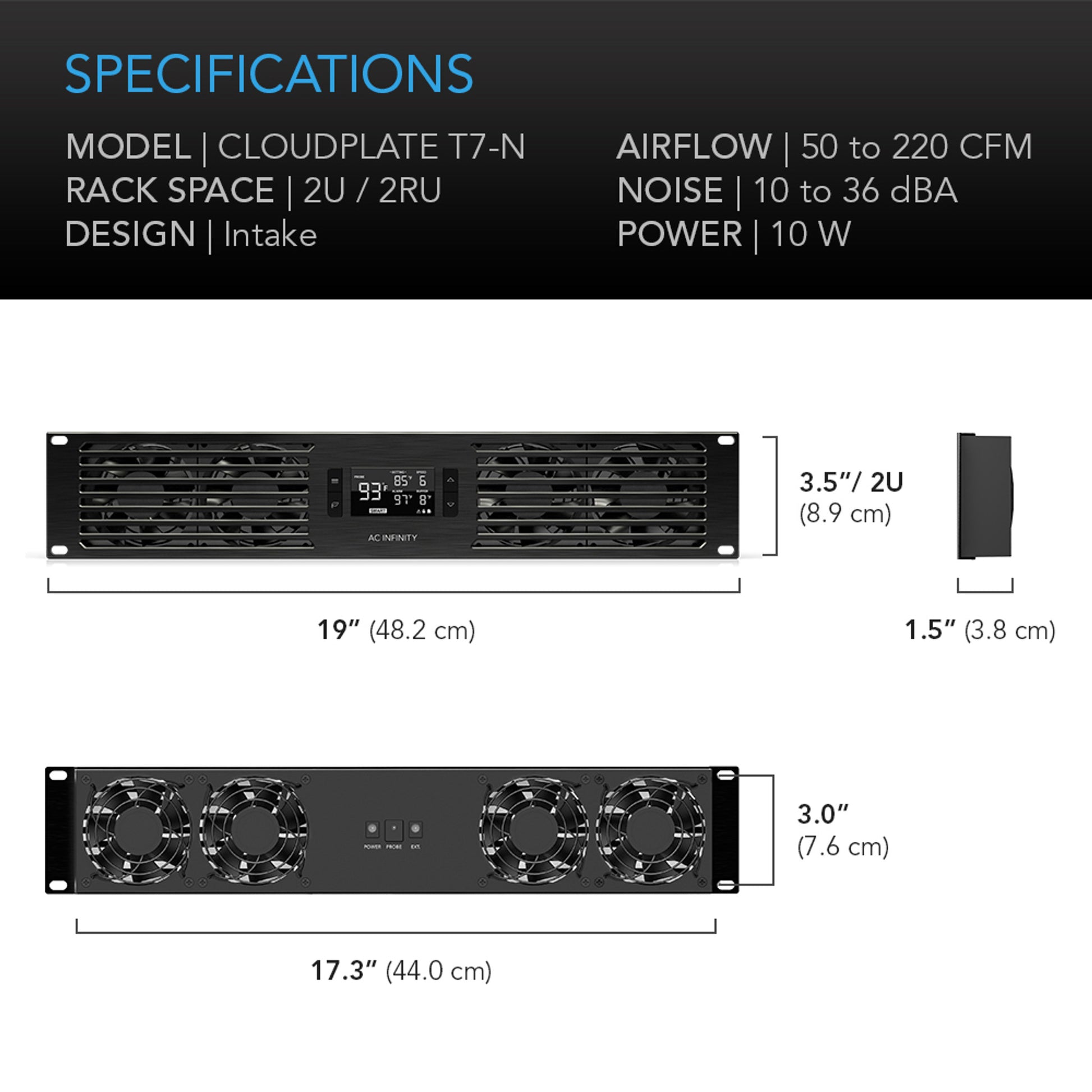

Product and Mounting Dimensions | |
Total Dimensions | 19.0 x 3.5 x 1.5 in. (48.3 x 8.9 x 3.8 cm) |
Rack Mount Size | Two Rack Units (2U) |
Screw Hole Size | Ø .24 x 0.35 in. (Ø 6.1 x 9.0 mm) Obround |
Hole to Hole Distance | 18.2 x 3.0 in. (46.4 x 7.6 cm) |
Display Size | 2.25 x 1.25 in. (4.7 x 3.2 cm) |
Probe Length | 72 in. (6 feet) |
Cord Length | 72 in. (6 feet) |
Product Performance and Technical Specs | |
Design | Intake |
Total Airflow | 50 to 220 CFM |
Total Noise | 10 to 36 dBA |
Static Pressure | 2.56 mm-H2O |
Operating Voltage | 12V DC |
Power | 10 W |
Current | 0.83 A |
Wall Adapter Input | 100 to 240V AC - Compatible UK adapter supplied |
Operating Humidity | 35 to 85% RH |
Operating Temperature | 0 to 158°F |
Fan Bearings | Dual Ball |
Mounting Positions | Horizontal or Vertical |
L10 Life Expectancy | 67,000 Hours |
UL Certification (Fans Only) |
|
CE Certification (Whole Product) |
|
RoHS Cert. (Whole Product) |
|
Product Manuals | |
Fan Unit Manual |
Compatible Power Supply Included
