AC Infinity

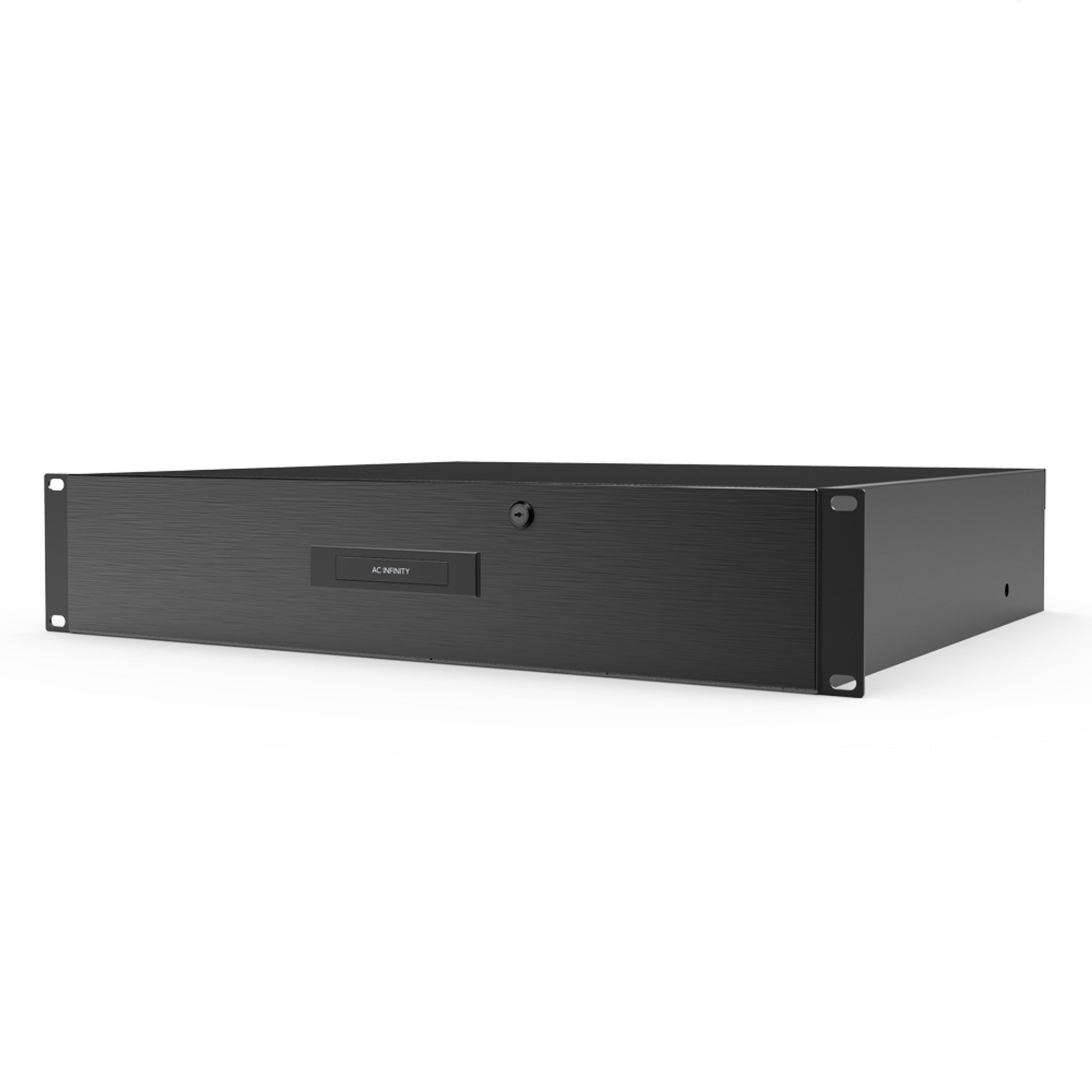

Heavy-Duty Rack Drawer With Aluminum Faceplate, 2U

Heavy-Duty Rack Drawer With Aluminum Faceplate, 2U

Regular price £79.99 GBP
Regular price Sale price £79.99 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

Electrical items ship with UK power supply


  • Designed to be mounted into any standard 19-inch rack to provide a secure storage space.
  • Features an aluminum faceplate, with an anodized brushed finish and CNC-machined detailing.

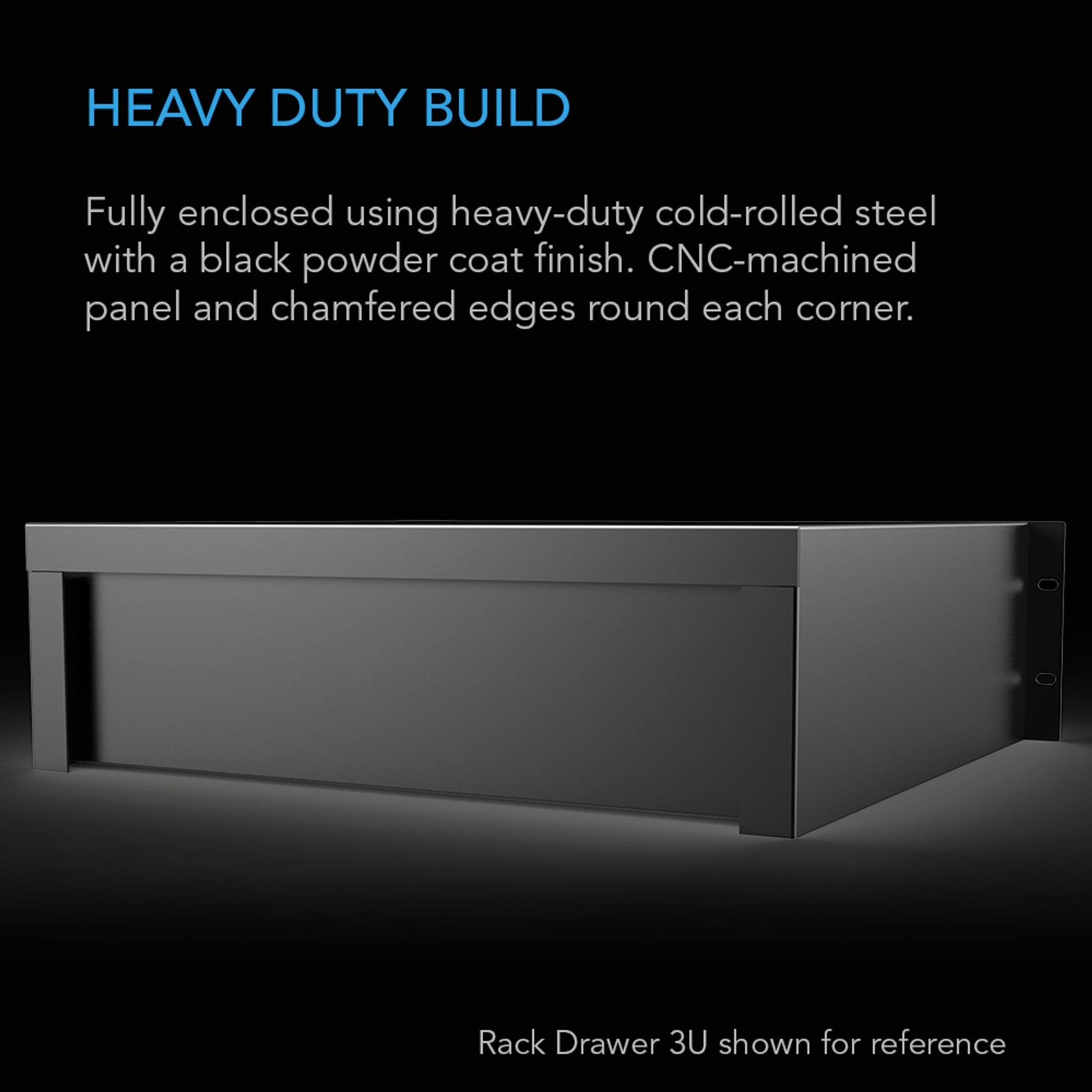

  • Fully enclosed using heavy-duty 2mm cold-rolled steel with chamfered edges for rounded corners.
  • Retractable drawer handle is concealed when not in use for a clean and professional appearance.
  • Takes up 2U of space. Includes mat, 10-32 screw set, lock, and keys.


The AC Infinity aluminum rack mount drawer is designed to be mounted into standard 19-inch racks to provide storage space. The drawer can securely hold various rack equipment such as cables, headphones, tools, manuals, and microphones. Features a black anodized aluminum faceplate. The remaining sides are fully enclosed using heavy-duty 2mm thick cold-rolled steel with a powder coat finish, and a cable passthrough slot in the rear. This rack drawer takes 2U of rack space and includes a mat and a 10-32 rack mounting screw set. Includes optional lock and keys for security use.

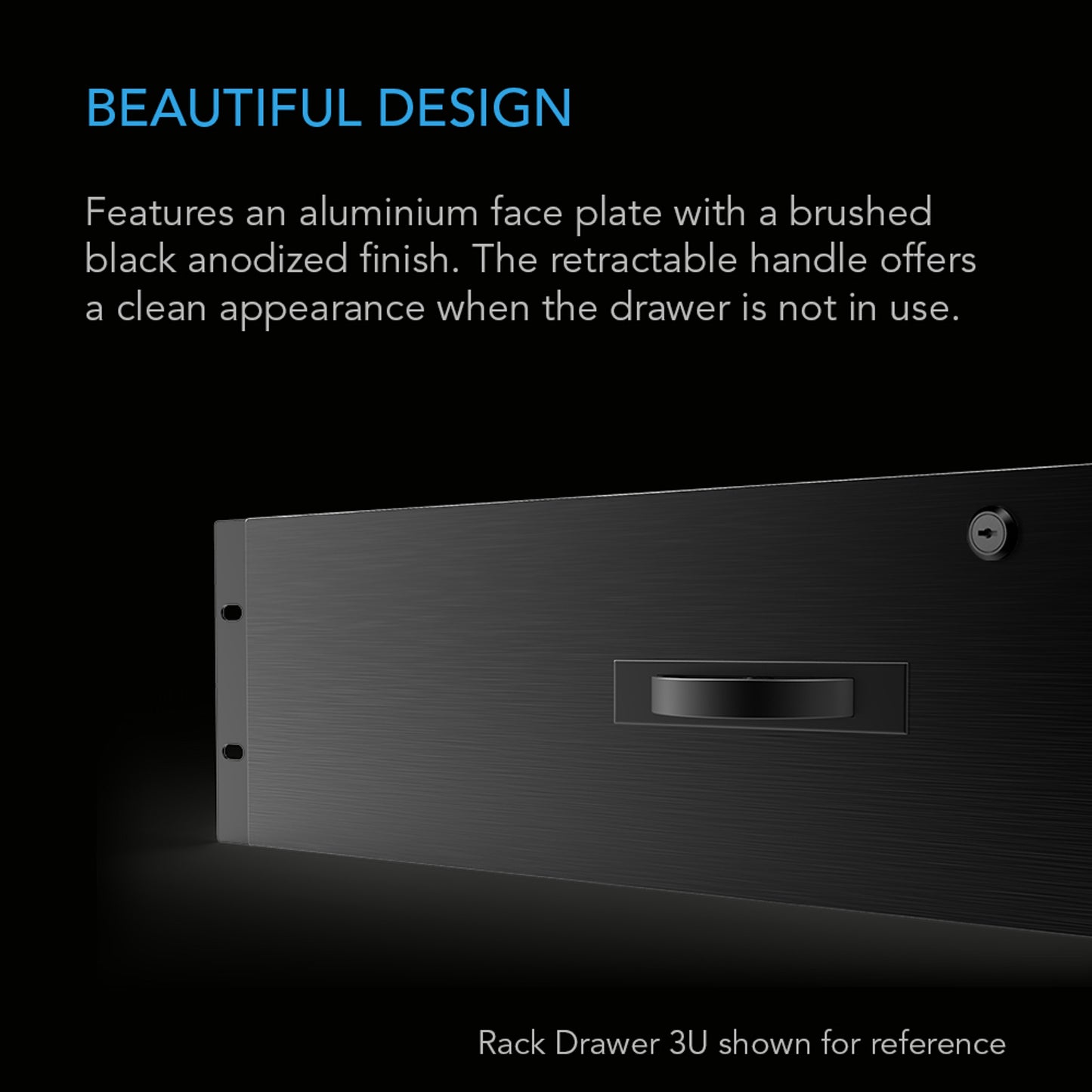

The aluminum faceplate is constructed from a solid block of high-grade alloy aluminum at 3mm thickness, then finished with a brushed black appearance. The panel is then CNC-machined, rounding each corner and chamfering each edge for a high-end look. The handle is designed to be concealed when not in use for a clean appearance and can be retracted when you need to pull open the drawer. This design makes it the perfect match for high-end audio/video and home theater racks.

   Product Identification
   Manufacturer    AC Infinity Inc.
   Product Name    Rack Drawer 2U
   Product Model    AC-RDA2
   UPC Code    854759004891

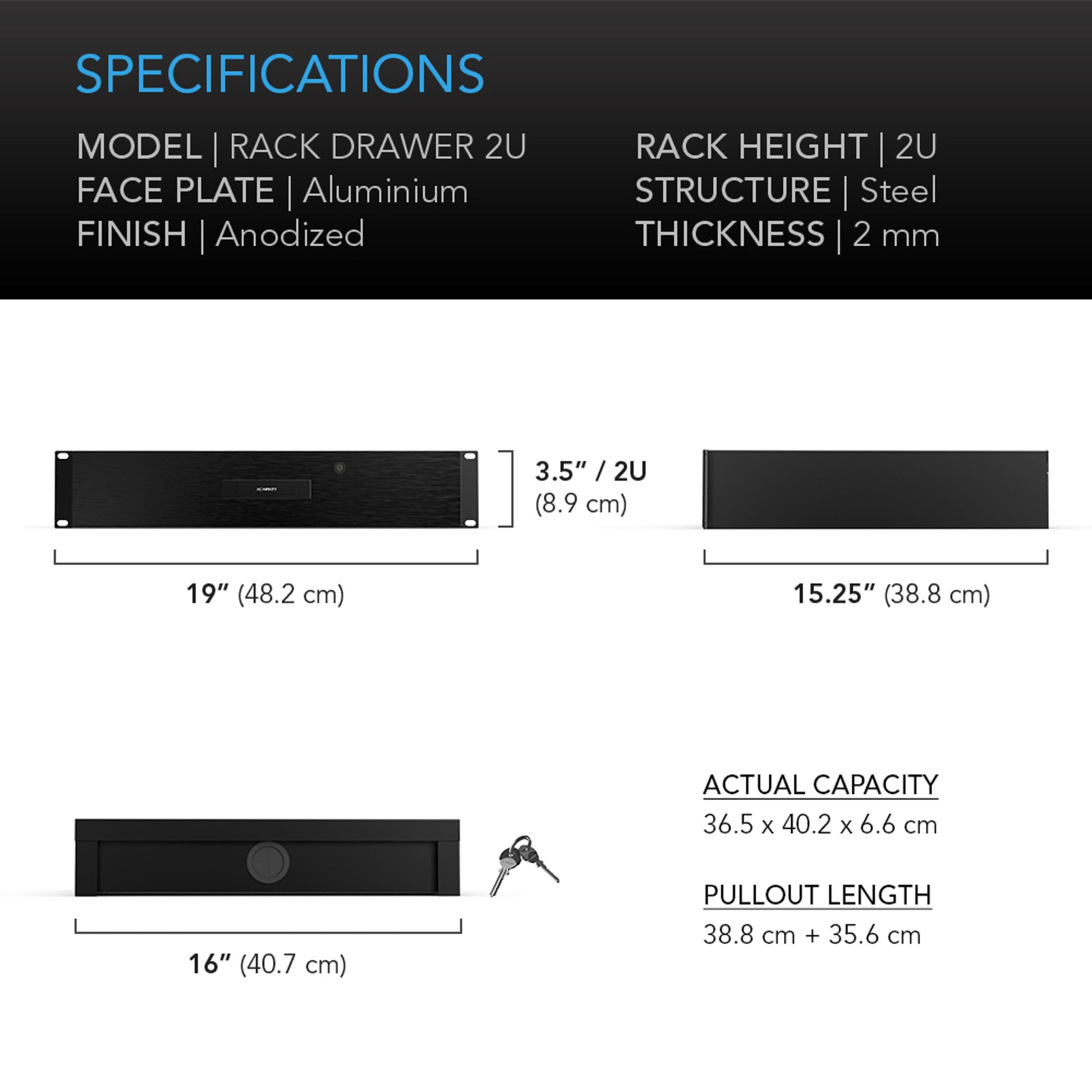

   Product and Mounting Dimensions
   Total Dimensions    15.25 x 19 x 3.5 in. (38.8 x 48.2 x 8.9 cm)
   Rack Mount Size    Two Rack Units (2U)
   Screw Hole Size    Ø .24 x 0.35 in. (Ø 6.1 x 9.0 mm) Obround
   Hole to Hole Distance    18.2 x 3.0 in. (46.4 x 7.7 cm)
   Capacity    36.5 x 40.2 x 6.6 cm
   Pull Out Length    38.8 cm + 35.6 cm
   Product Performance and Technical Specs
   Faceplate Material    Aluminium
   Faceplate Finish    Anodized Black with Brush
   Structure    Cold Rolled Steel
   Structure Finish    Black Powder Coat Paint
   Steel Thickness    2mm
   Drawer Handle    Retractable Rotating

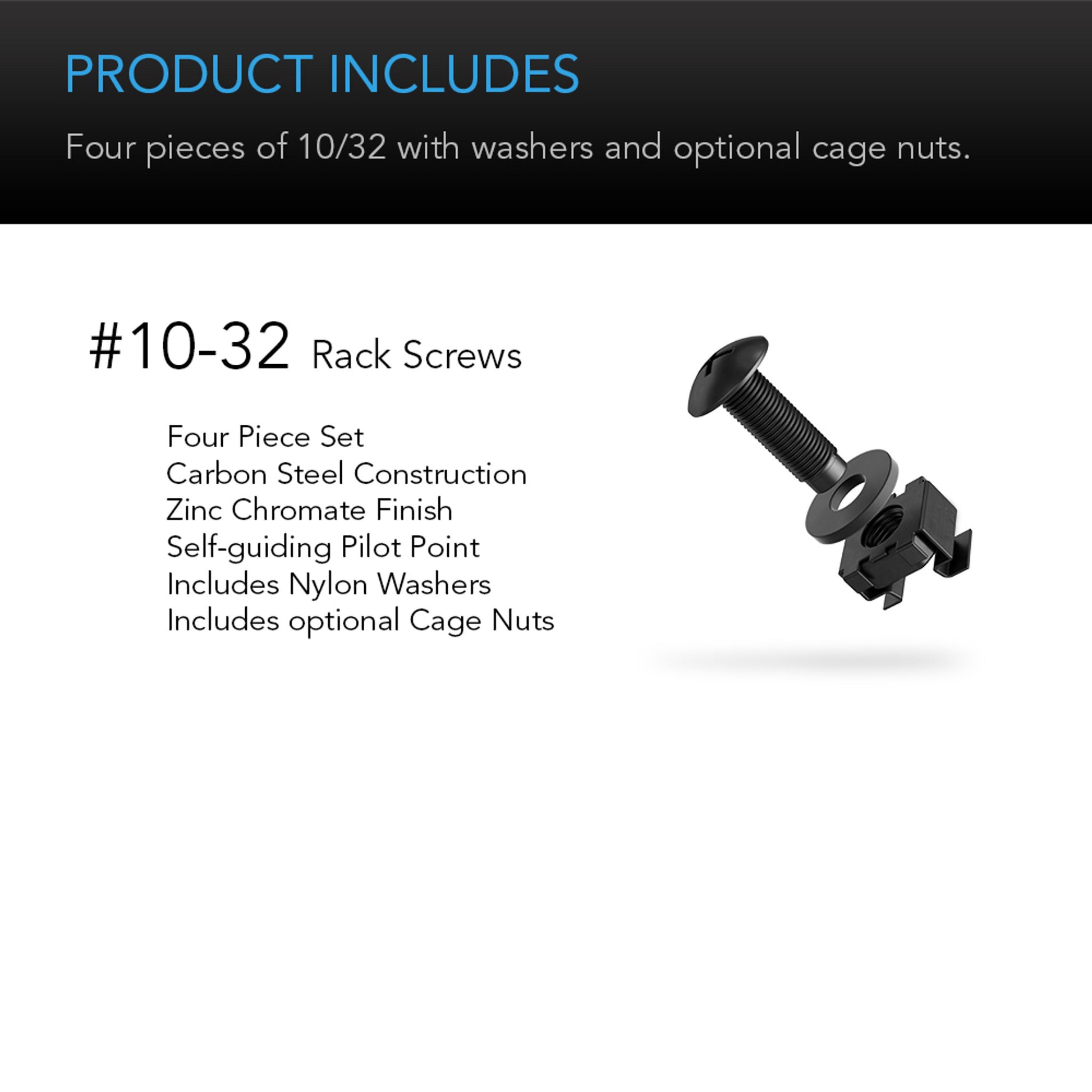

   Screws Sets Included    Four Piece #10-32 Rack Screws plus Washers and Cage Nuts
   Drawer Mat Included    Yes
   Rear Cable Grommet Included    Yes
   Keylock Included    No Key and Lock
