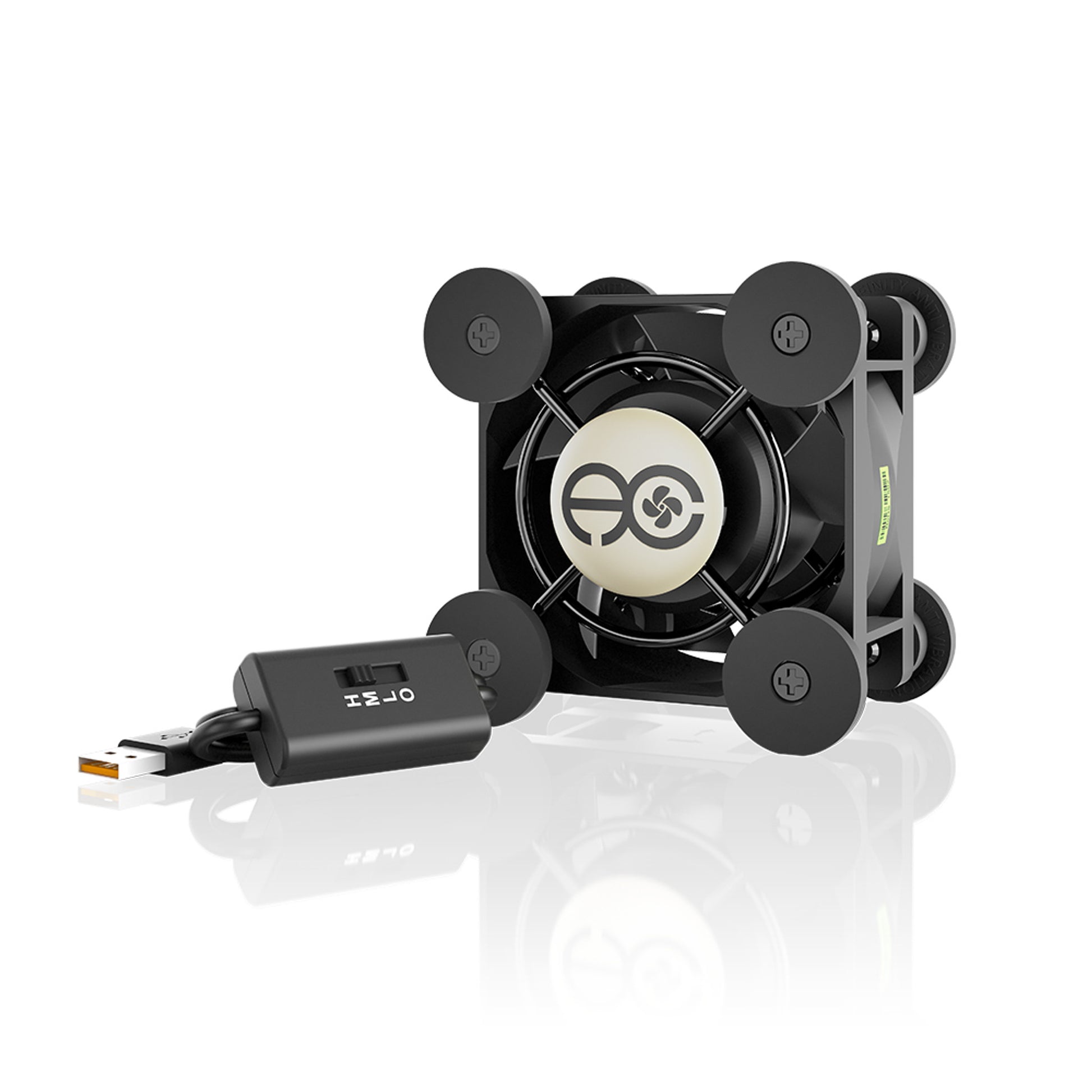

Multifan Mini, Quiet Usb Cooling Fan, 40MM

Multifan Mini, Quiet Usb Cooling Fan, 40MM

Regular price £15.99 GBP
Regular price Sale price £15.99 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

AI-MPF40A

  • Compact and energy-efficient USB fan designed various DIY cooling and ventilation projects.
  • Features a multi-speed controller to set the fan’s speed to optimal noise and airflow levels.

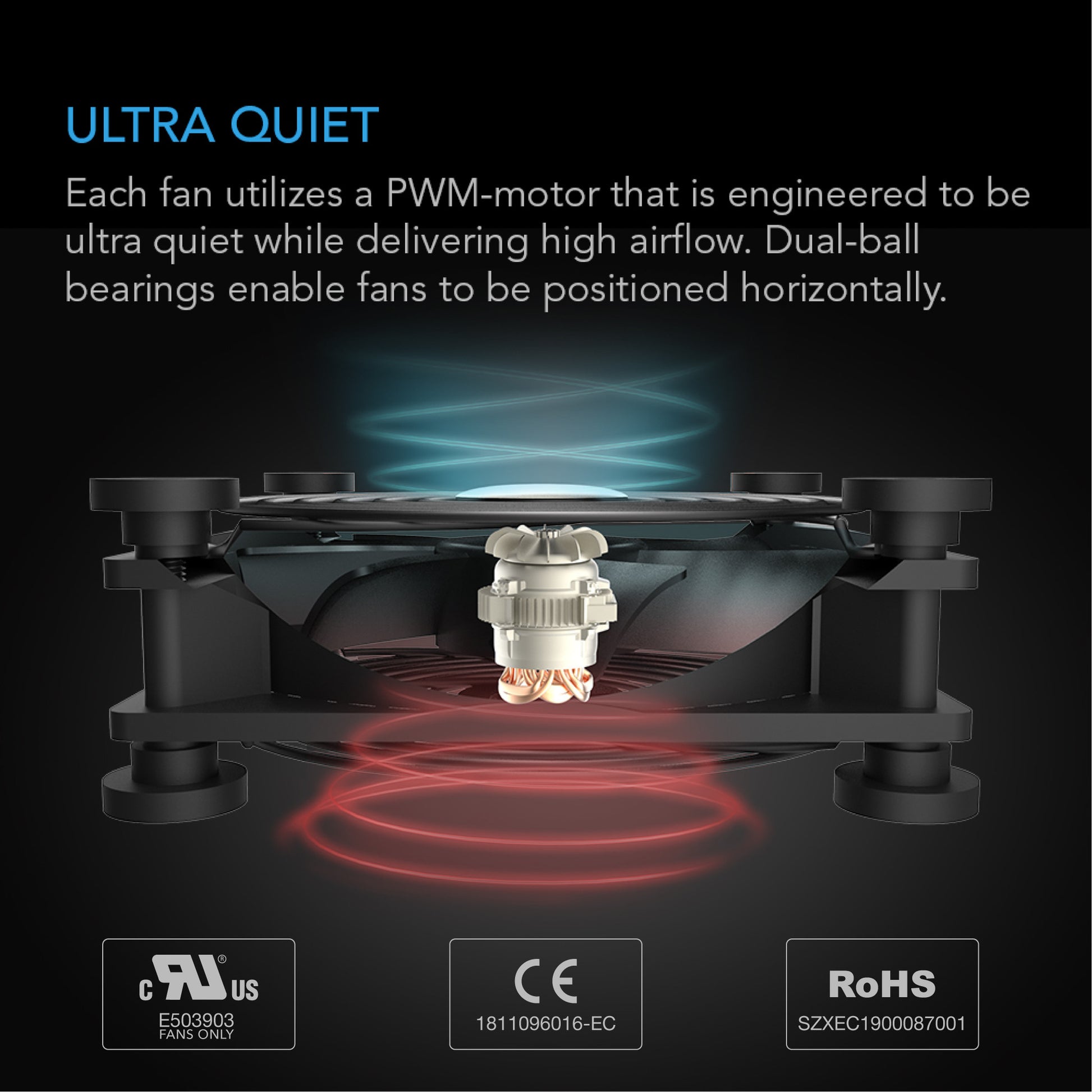

  • Dual-ball bearings have a lifespan of 67,000 hours and allows the fans to be laid flat or stand upright.
  • USB plug can power the fan through USB ports found behind electronics and on portable power banks.
  • Dimensions: 1.6 x 1.6 x 0.8 in. | Airflow: 12 CFM | Noise: 18 dBA| Bearings: Dual Ball

PRODUCT DESCRIPTION

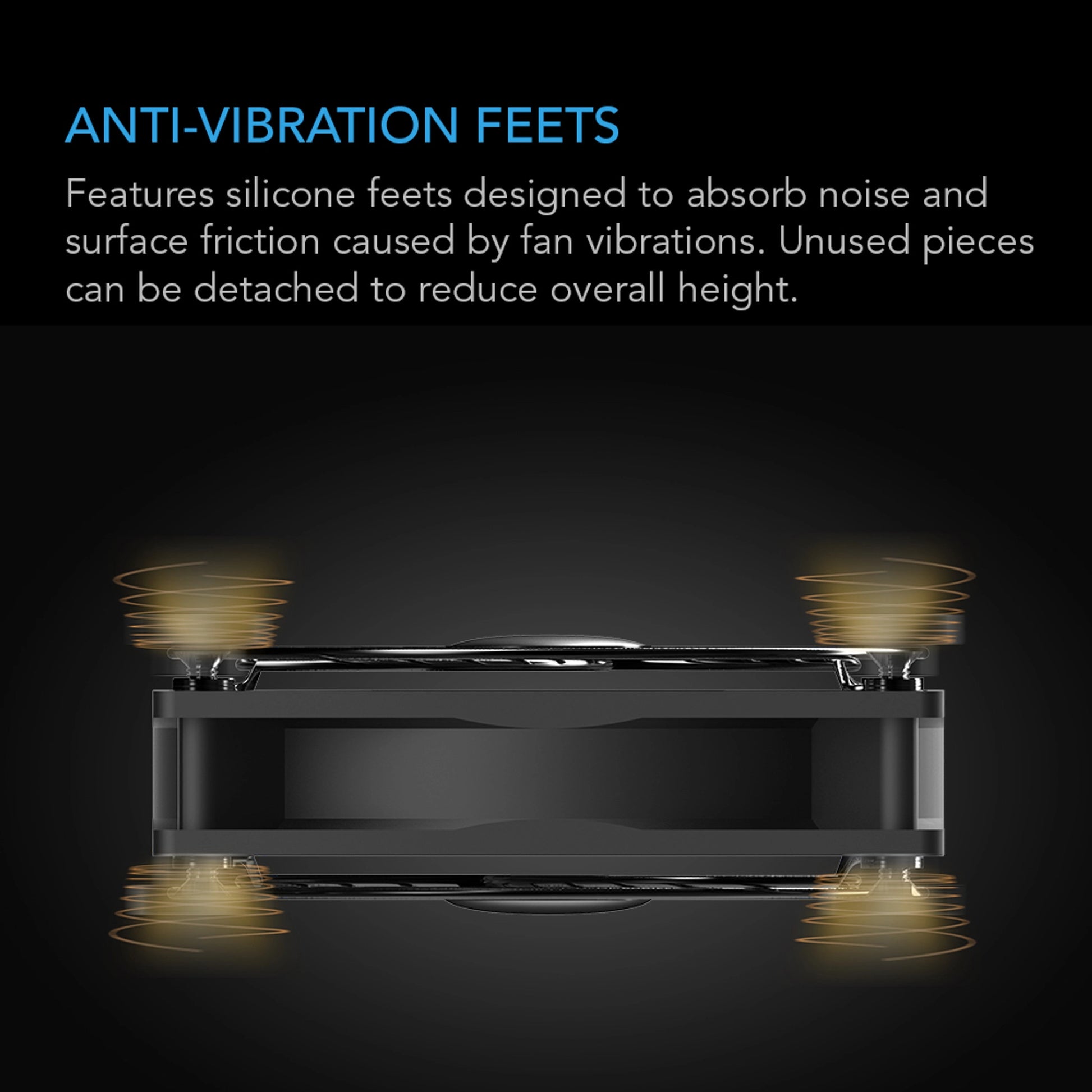

The small cooling fan can be positioned to stand upright or laid flat to cool various electronics and ventilate DIY projects. Features a multi-speed controller with power switch. Includes anti-vibration rubber feet and a 6-foot power cord. The low power-consumption fan be be powered by USB ports found behind popular electronics and on portable power banks. Each unit contains an additional USB port, up to four fans can be daisy chained together to share the same power source. This fan system is CE and RoHS certified and contains premium dual-ball bearings, allowing it to be mounted horizontally or vertically.

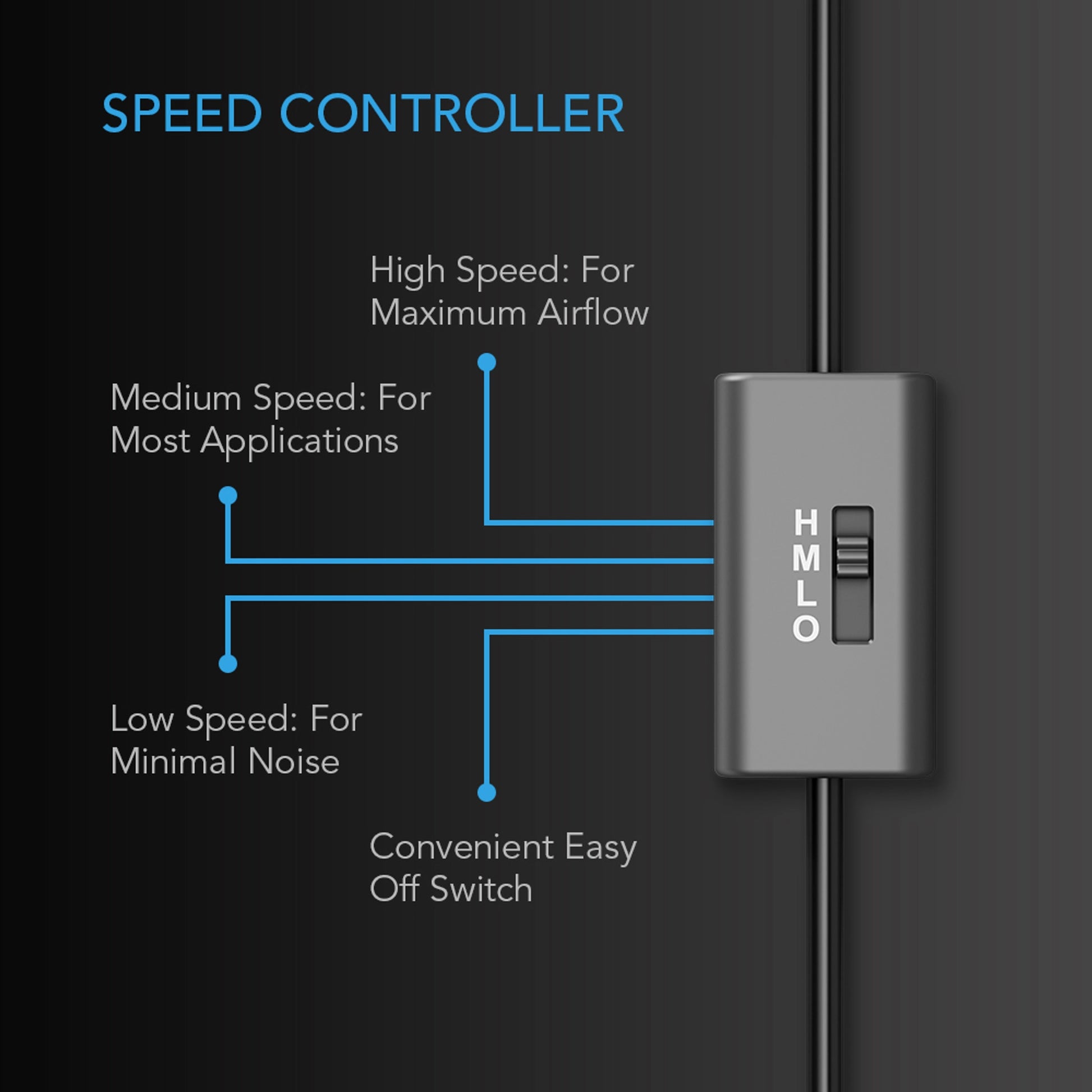

SPEED CONTROLLER

The fan includes an in-line multi-speed controller with power switch to set the fan’s speed to optimal noise and airflow levels for various environments.

CONNECTING ADDITIONAL UNITS

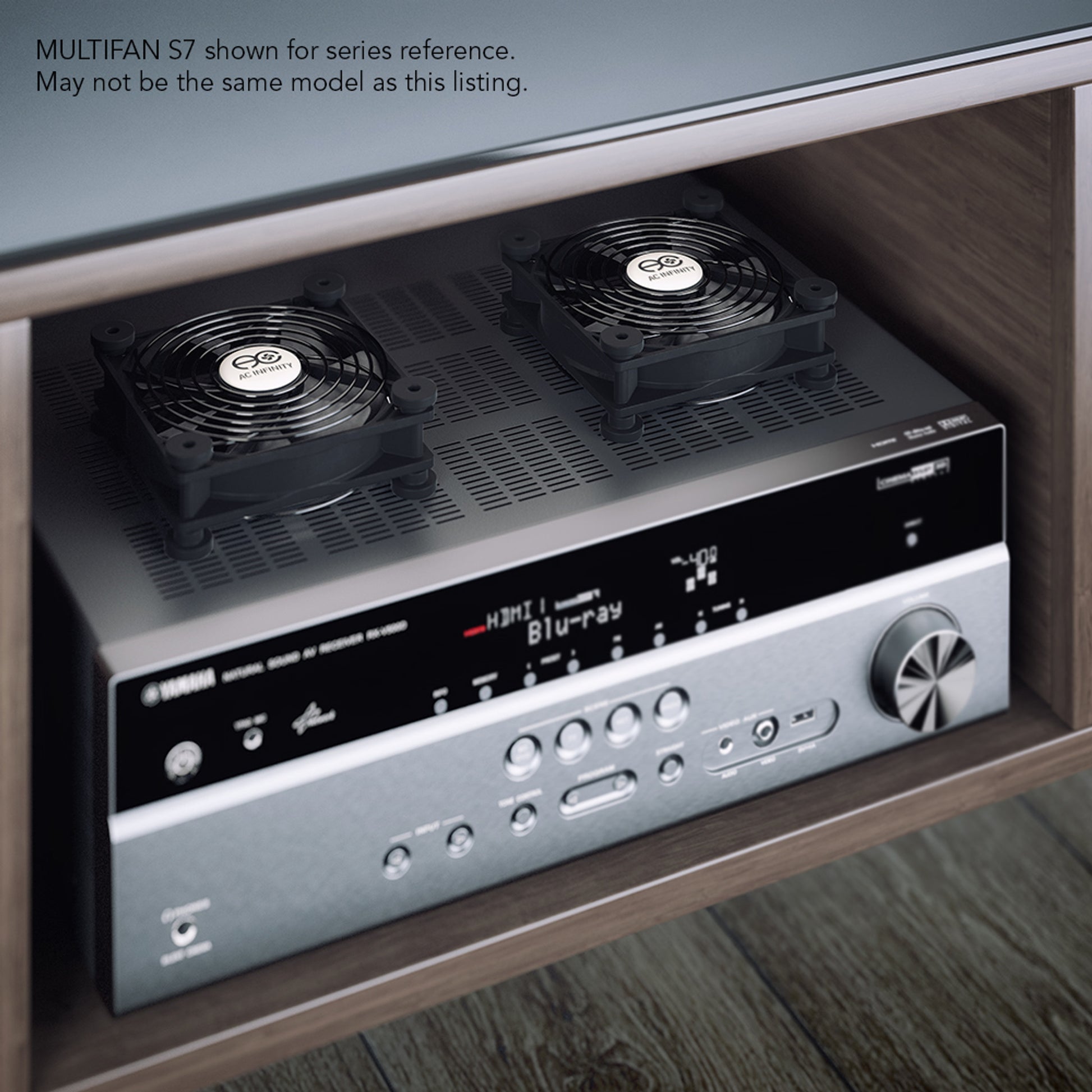

For applications that requires more airflow, each fan unit can daisy chain additional MULTIFAN S series fans. Up to four fans can share the same USB power source; and up to six fans can share the same thermal controller (sold separately). MULTIFAN S1, S2, S3, S4, and Mini contains one fan, and MULTIFAN S5 and S7 contains two fans.

APPLICATIONS

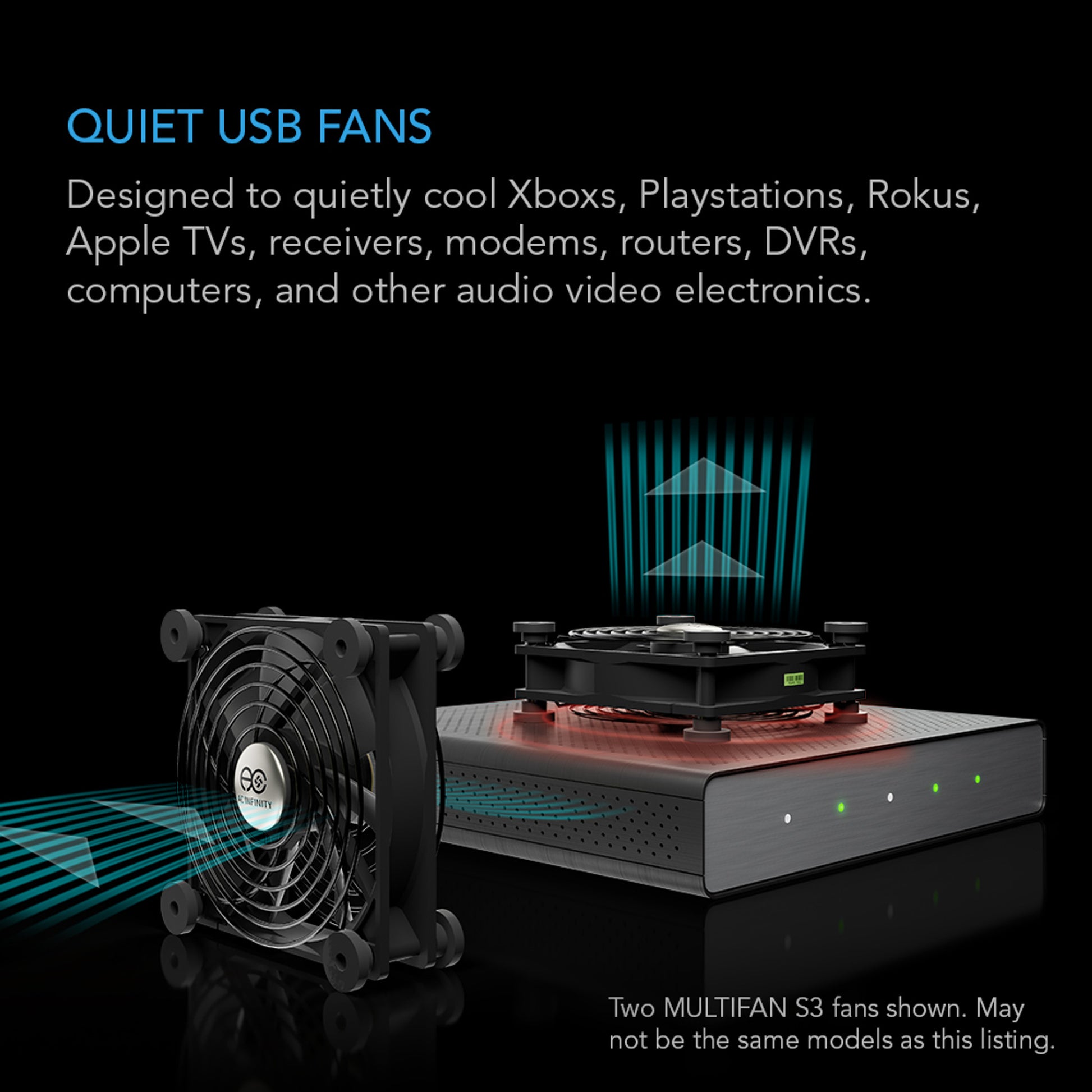

This small and energy-efficient cooling fan is popular in various cooling and ventilation applications including video game consoles, cosplay, helmets, virtual reality gear, aquarium, Roku, router, raspberry pi, and other DIY projects.

  Product Identification
   Manufacturer    AC Infinity Inc.
   Product Name    MULTIFAN Mini
   Product Model    AI-MPF40A
   UPC Code    819137020559

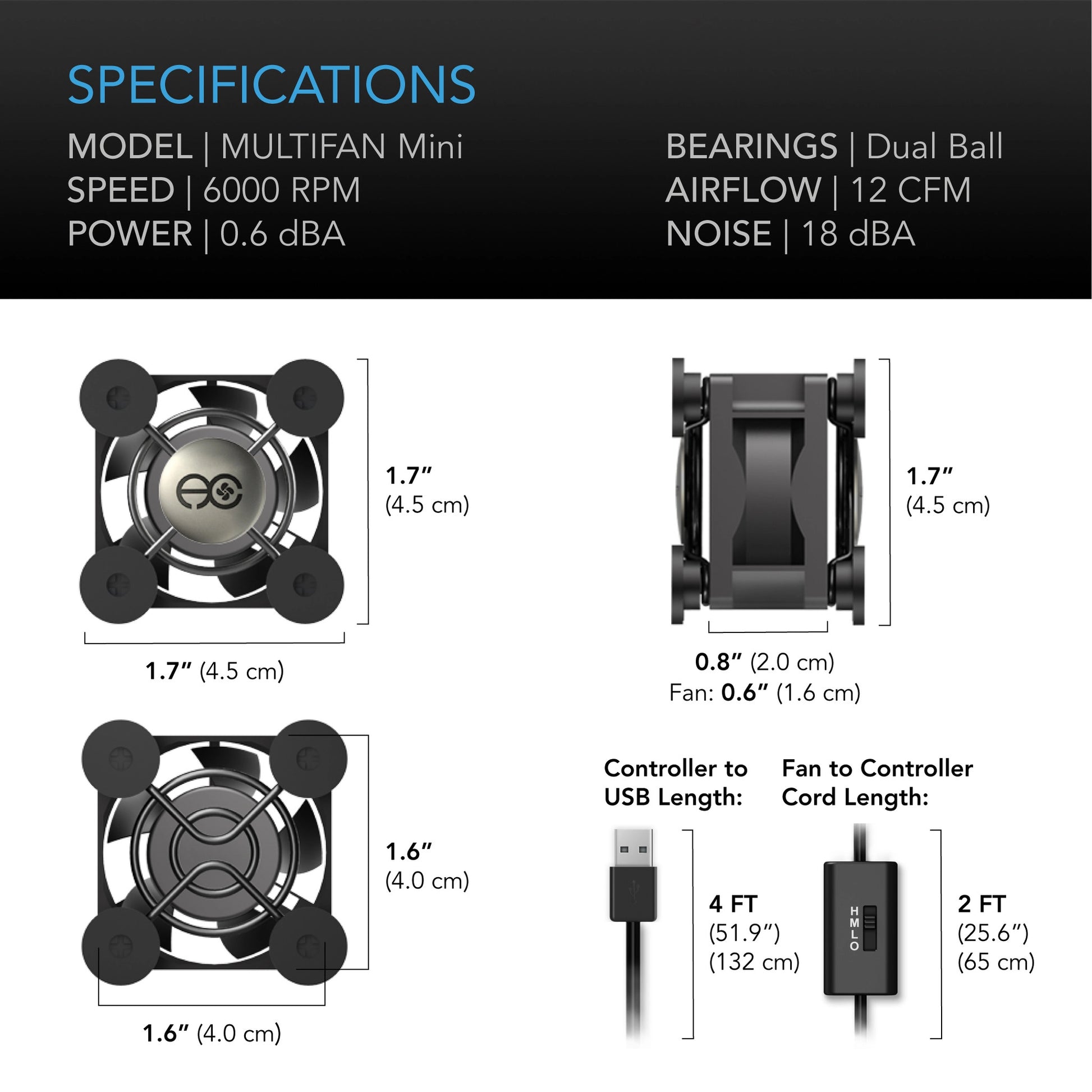

   Product Dimensions
   Total Dimensions    1.6 x 1.6 x 0.8 in (40 x 40 x 20 mm)
   Hole to Hole Distance    1.26 x 1.26 in. (3.2 x 3.2 cm)
   Screw Hole Size    Ø 0.1 in. (Ø 0.35 cm)
   Cord Length    72 in. (6 feet)
   Product Performance and Technical Specs
   Total Airflow    12 CFM
   Total Noise    18 dBA
   Speed    6000 RPM
   Operating Voltage    3 to 7V DC
   Power    0.6 W
   Current    0.12 A
   Static Pressure    4.2 mm-H2O
   Operating Humidity    35 to 85% RH
   Operating Temperature    0 to 158°F
   Fan Bearings    Dual Ball
   Mounting Positions    Horizontal or Vertical
   L10 Life Expectancy    67,000 Hours
   UL Certification (Fans Only)
   CE Certification (Whole Product) PDF
   CE Certification (Whole Product)
   Installation Manual PDF
   RoHS Cert. (Whole Product)
   Installation Manual PDF
   Product Manuals
   Fan Unit Manual
   Installation Manual PDF
